Throttle Body (Electronic Throttle Module (ETM)), Replacing: Installing: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For tightening torques, see:Tightening torque

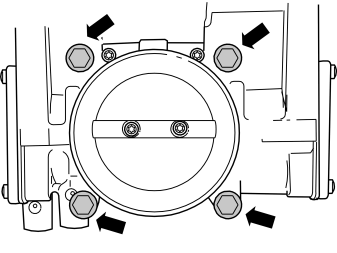

Fig 1: Identifying Throttle Body And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the new throttle body with new gasket
the 4 x screws for the throttle body.

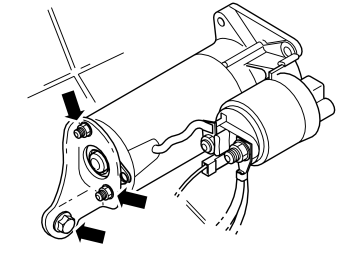

Fig 2: Identifying Cylinder Block Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the wiring for the throttle body behind the bracket for the starter motor.

Install the screws in the cylinder block.

Tighten the two nuts and the screw.

Connect the connector and install the tie strap.

NOTE:

If the wiring was not behind the bracket for the starter motor, it must be secured along the cable duct by two tie straps.

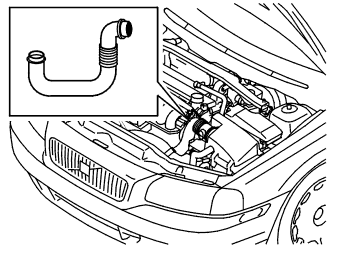

Fig 3: Identifying Dipstick Tube

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the intake manifold between the throttle body (TB) and the air cleaner
the dipstick tube

Connect the negative battery lead. Battery, disconnecting
