Installing The Engine Cooling Fan (FC) And Fan Shroud
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Carefully lower the fan shroud and align with the holders. Route the cable harness behind the holder (3).
Tighten both the mounting screws
Press the hose down from the expansion tank into the holder on the fan shroud

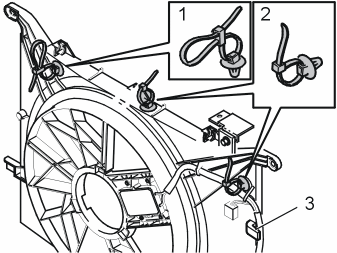

Transfer the clips from two tie-straps to the tie straps that have two catches (1).
Secure the cable harness by the fan shroud using tie straps (1) and (2).
Install:
- the canister purge (CP) valve
- the hose clamp and charge air pipe/hose on the right-hand side (turbo charged engines only)
- the intake manifold to the air cleaner (ACL) housing.
Connect the engine cooling fan (FC) connectors.

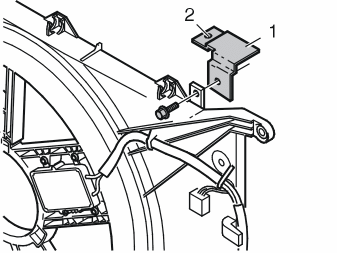

Transfer the bracket (1) to the new fan shroud.
Install the connectors for the fan on the bracket using the holder from the service kit (2).
