Installing The Leak Diagnostic Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

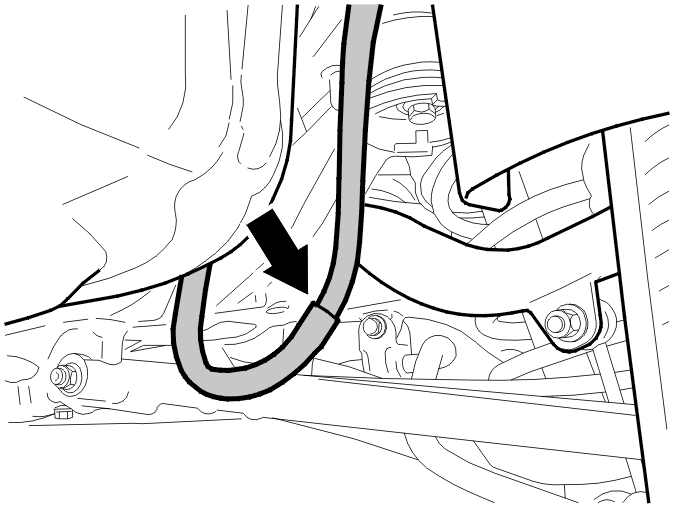

Fig 1: Evacuation Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Insert the hose. Connect the hose to the evacuation pipe.

HINT: Lubricate the hose using soap solution to facilitate installation.

Carefully route the pipe to its original position.

NOTE:

Do not bend the evacuation pipe.

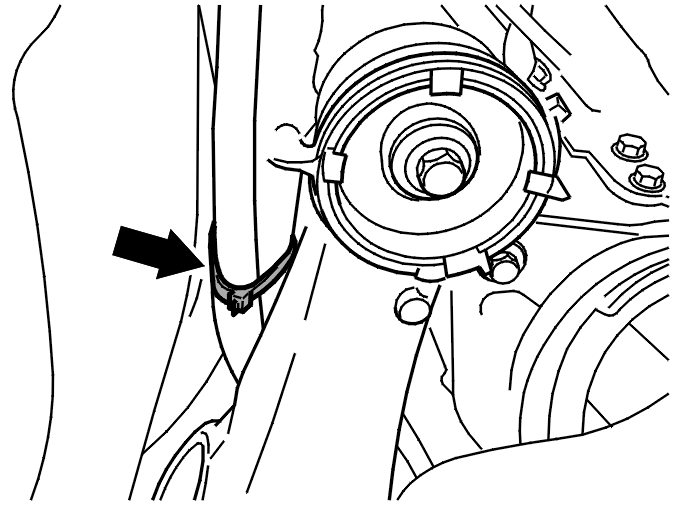

Fig 2: Filler Pipe/Evacuation Pipe Tie Strap

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the tie strap around the filler pipe/evacuation pipe.

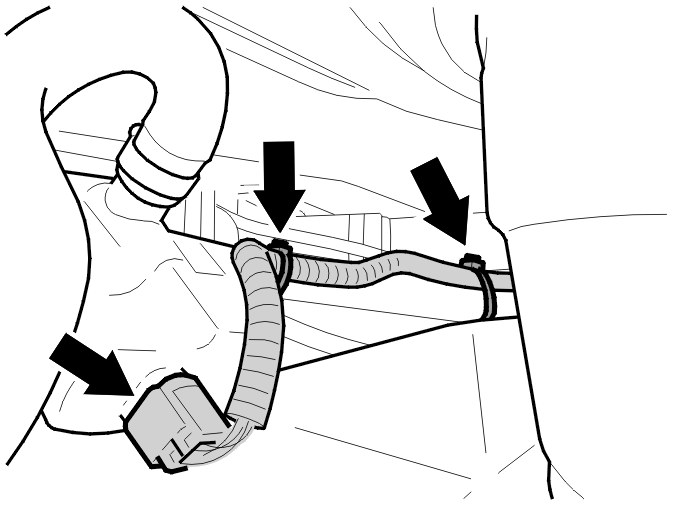

Fig 3: Cable Harness Tie Straps

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

2 tie straps on the cable harness
the connector.
