Removing The Splash Guard Pipe

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

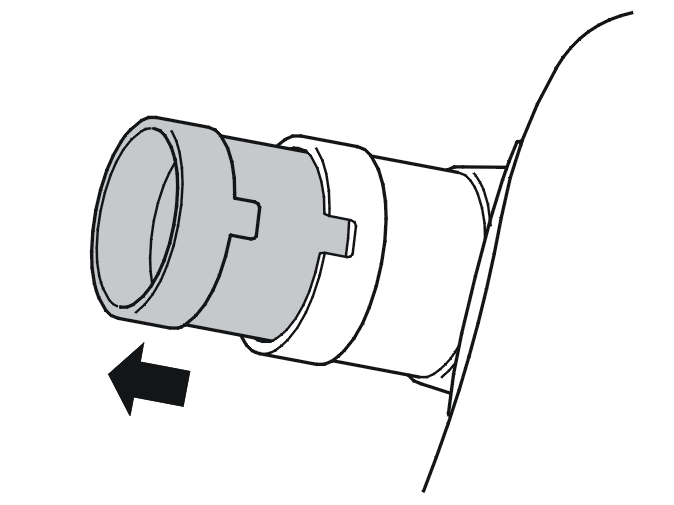

Fig 1: Removing Splash Guard Pipe
GLL102860Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the splash guard pipe. Pull straight out.
