Installing The Splash Guard Pipe

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

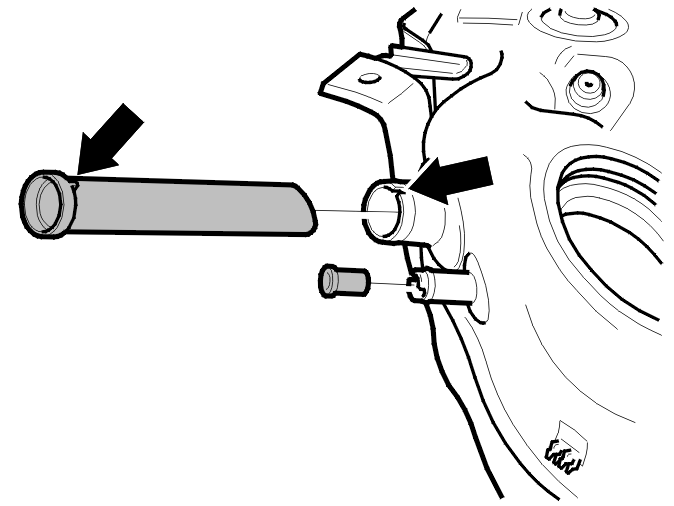

Fig 1: Installing Splash Guard Pip
GLL102847Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the splash guard pipe.

NOTE:

Ensure that the locating pin is correctly positioned for the groove in the tank.
