Installing The Brakes

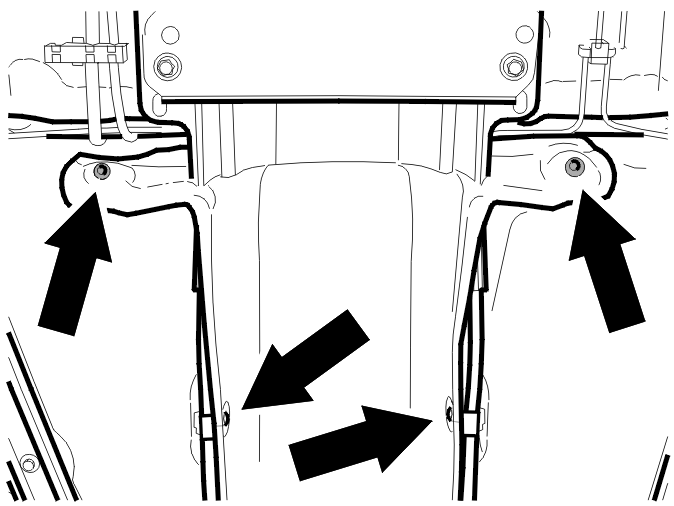

Fig 1: Center And Front Mountings Screws For Heat Shield

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the parking brake cable along the heat shields
• the screws in the center and front mountings for the heat shield.

Fig 2: Handbrake Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the parking brake cables on the wheel units
• the parking brake cable mountings in the sub-frame. (25 Nm  )
• the mounting for the parking brake cable on the track rods.

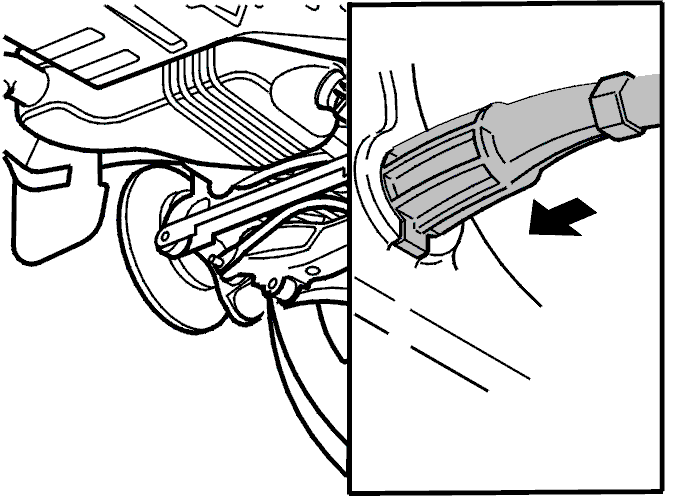

Fig 3: Pressing Cable Sleeve Guide Sleeve Into Place In Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the guide sleeves for the parking brake cables into place on the wheel units.

HINT: Lubricate the O-rings on the guide sleeves. Use lubricant 1161580 or silicon grease.

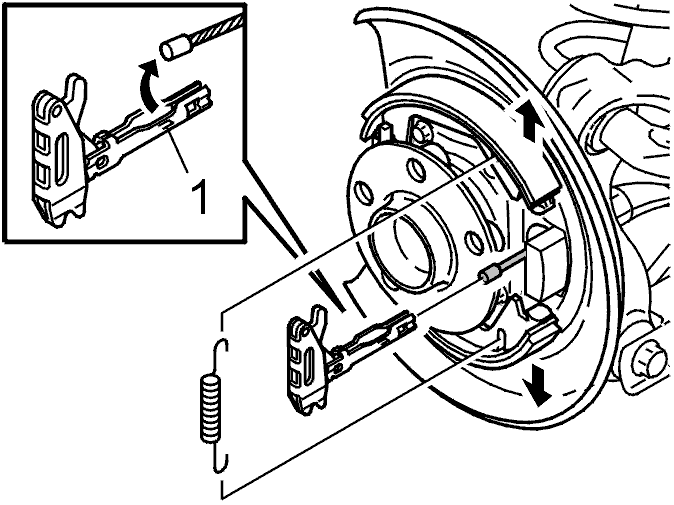

Fig 4: Identifying Return Spring And Expander

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the expander on the cable. Press the mounting together to lock the cable in the expander
• the expander between the brake shoes
• the return spring.

Check the function.

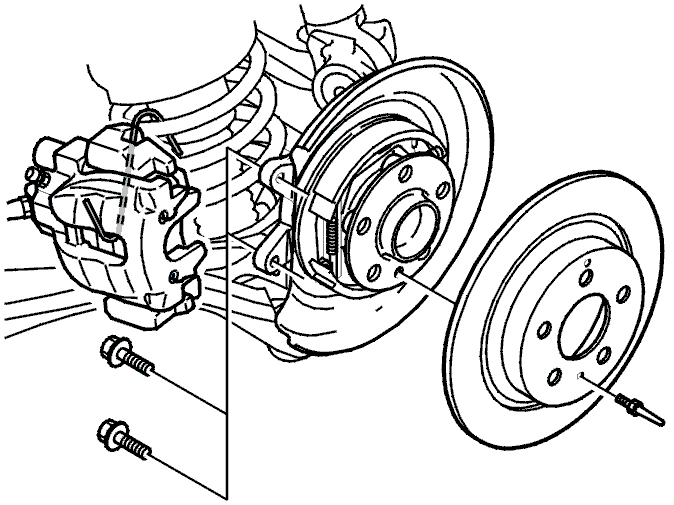

Fig 5: Brake Disc And Locating Pin

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the brake disc and the locating pin. Tighten to 10 Nm
• the brake caliper. Use new screws. Tighten to 60 Nm  .

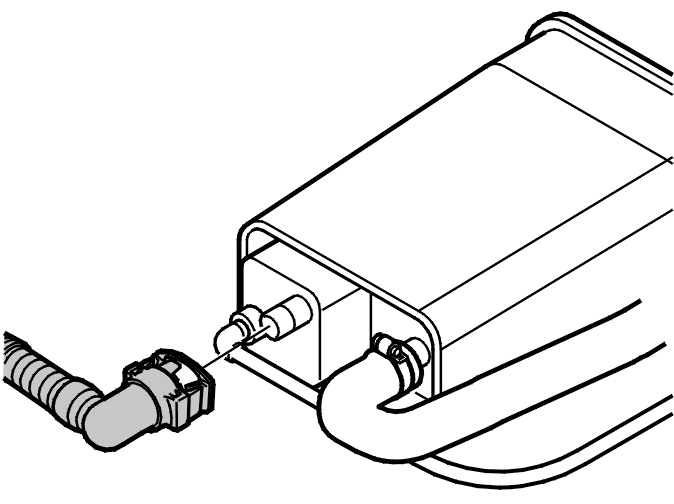

Fig 6: Fuel Tank And Plastic Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the plastic pipe from the fuel tank with the large connector on the carbon filter container.
