Installing The Fuel Filler Pipe

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

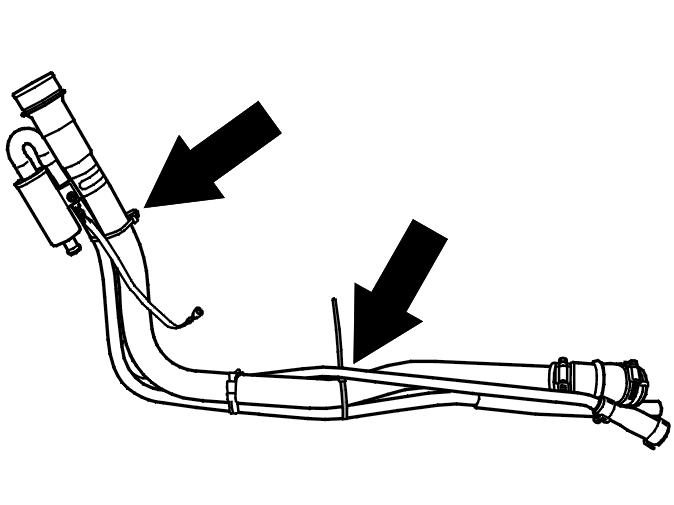

Fig 1: Filler Pipe And Clamps

Courtesy of VOLVO CARS OF NORTH AMERICA.

Transfer components to the new pipe. Assemble and clamp as illustrated.

NOTE:

Always use new hose clamps.

Install:

the fuel filler pipe
the shut-off valve hose
the ground lead for the wheel arch. Tighten to 10 Nm
the rubber boot around the fuel filler pipe
tensioner ring
the fender liner. See Rear fender liner .
