Transferring The Fuel Pump (FP)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

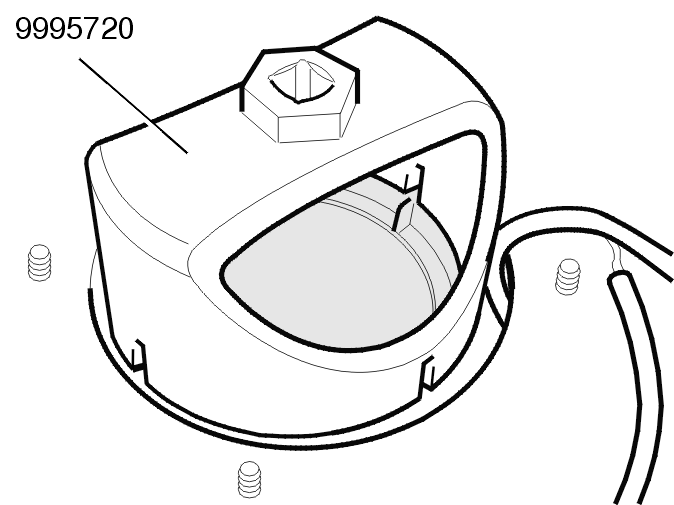

Fig 1: Identifying Fuel Pump Cover Removal Tool 999 5720

Courtesy of VOLVO CARS OF NORTH AMERICA.

Removal

Remove the cover.

Use special tool 9995720 .

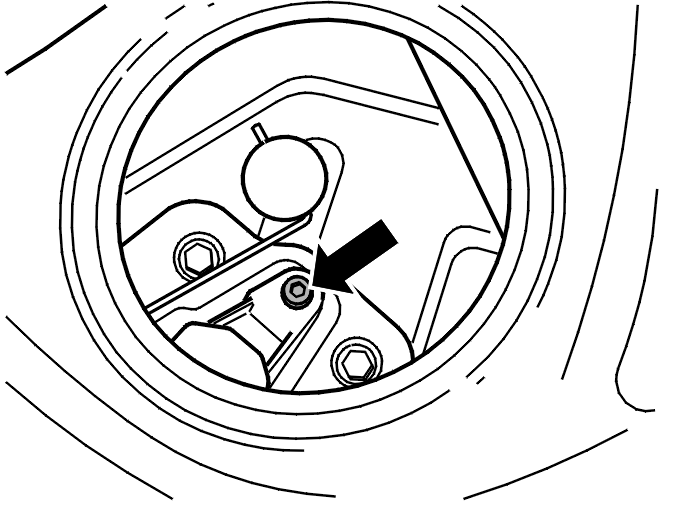

Fig 2: Locating Fuel Pump Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw (1).

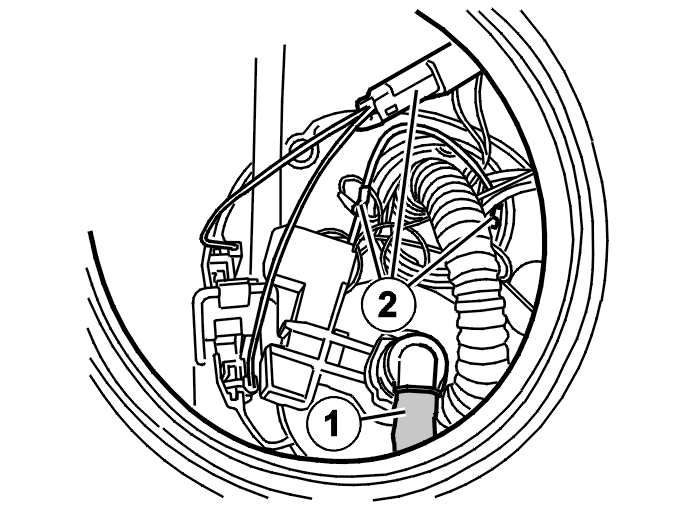

Fig 3: Identifying Fuel Hose And Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully turn the pump to access the fuel hose (1).

Remove:

the hose (1)
the three connectors (2).

Carefully lift up the pump.

NOTE:

Ensure that the level sensor arm is not obstructed. Do not bend the arm when removing the pump.

Installation

Lower the pump into the tank.

Install:

the fuel hose
the three connectors.

Turn the pump to the installation position. Install the mounting bracket and screw. (M6)

Install the cover.

Use special tool 9995720 .

For tightening torques, see Tightening torque .
