Removing The Tank: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

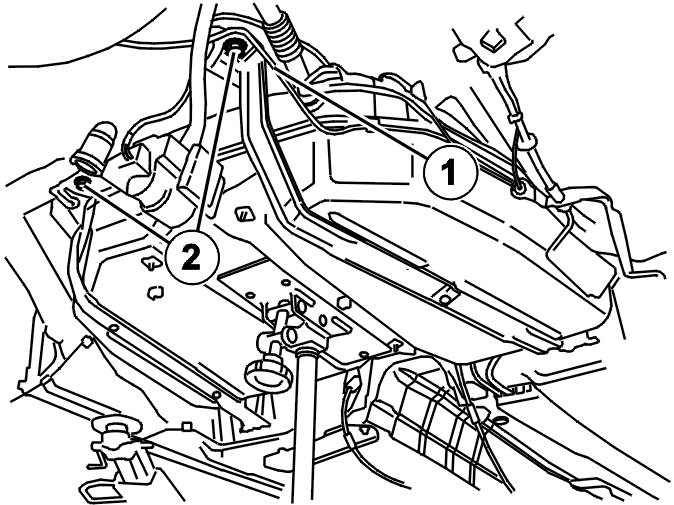

Fig 1: Identifying Fuel Line And Fuel Tank Front Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position gearbox jack 9985972 with plate 9995972 under the tank.

Remove:

the fuel line (1)
the two screws for the front mounting (2) for the fuel tank.

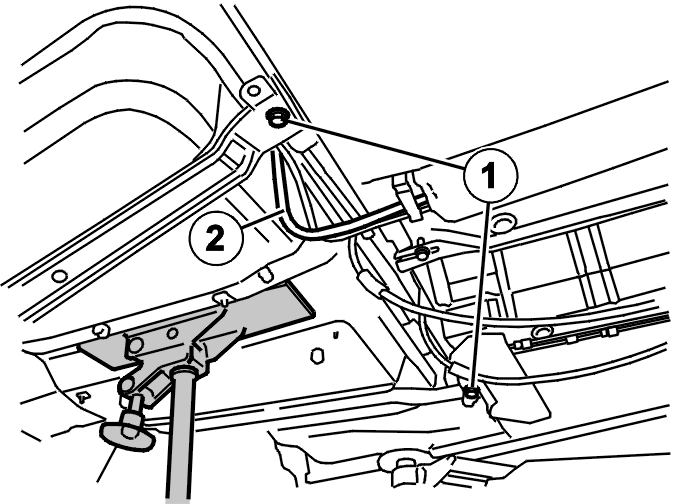

Fig 2: Identifying EVAP Hose And Fuel Tank Rear Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the evaporative emission system (EVAP) hose (1) from the clip mountings.

Remove the two screws (2) for the rear mounting for the fuel tank.

Lower and remove the fuel tank.
