Removing The Screws For The Upper Spring Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

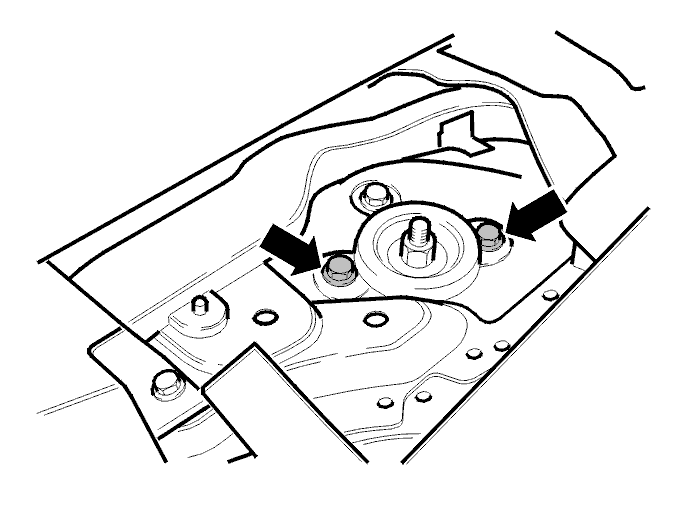

Fig 1: Locating Screws For The Upper Spring Seat

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cargo compartment carpet.

Disconnect and fold out the side panels in the cargo compartment.

Remove the seal above the shock absorber mounting on both sides.

Remove the two screws for the spring seat mounting on both sides.

Raise the car.

NOTE:

Lift the sill edges so that the rear axle is free.
