Removing The Brake Cable For The Handbrake

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

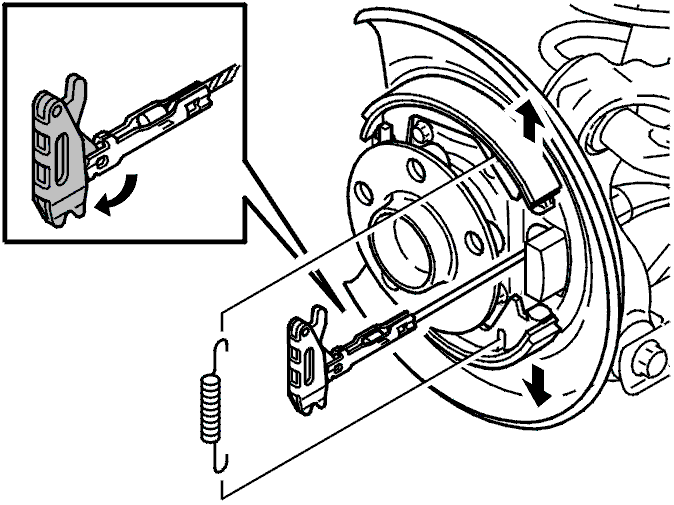

Fig 1: Identifying Parking Brake Adjuster

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the locating pin for the brake disc
the brake disc
the return spring at the expander
the expander. Lift the brake shoe slightly. Grip the expander. Pull the expander outwards.

Unhook the expander from the metal bracket.

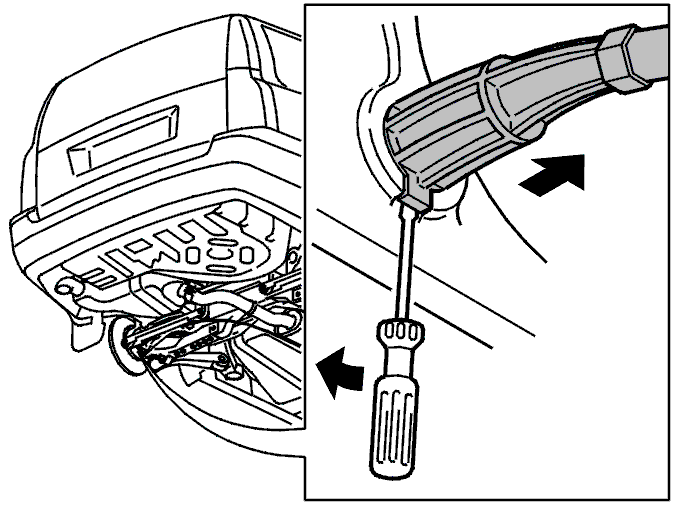

Fig 2: Applying Screwdriver Between Guide Sleeve Lug And Wheel Arch

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove (on both sides):

the guide sleeve for the cable sleeve. Apply a screwdriver between the guide sleeve lug and wheel arch. Pry apart slightly to remove the sleeve.

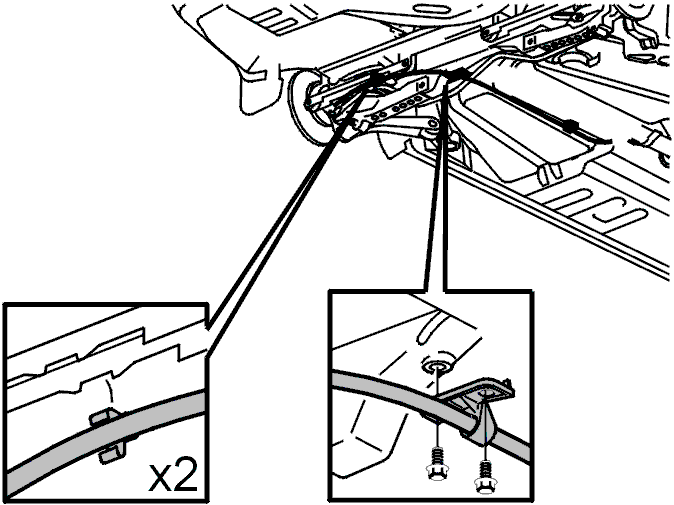

Fig 3: Handbrake Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the handbrake cable from the track rod and the sub-frame on both sides.
