Preparations For Lowering The Rear Axle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

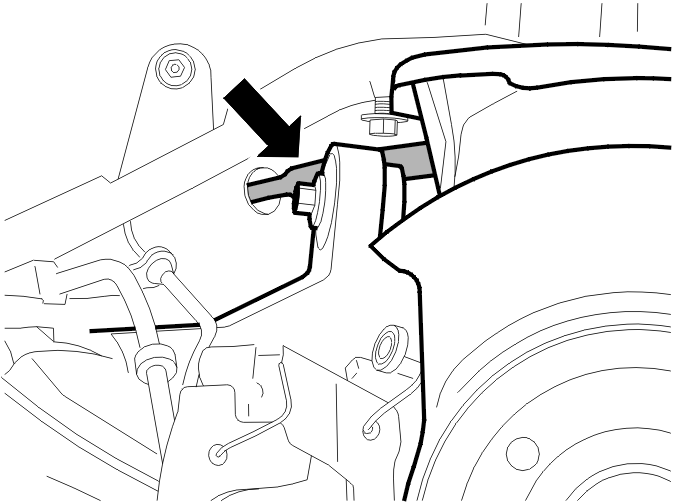

Fig 1: Identifying Evaporative Emission System Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the evaporative emission system (EVAP) pipe from the clip between the tank and rear axle.

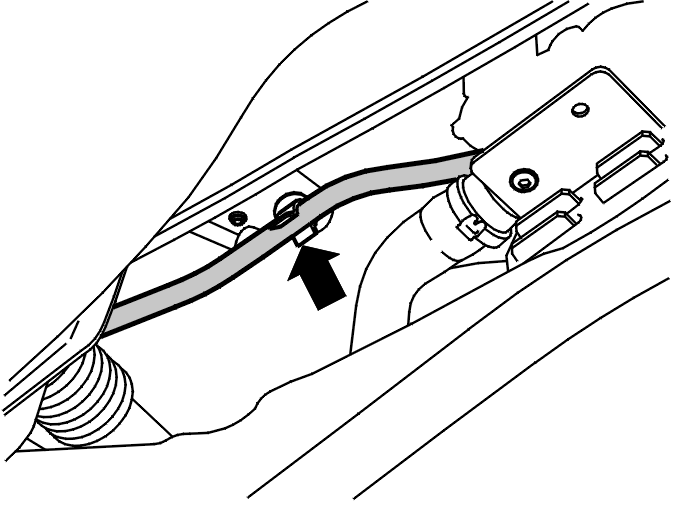

Fig 2: Identifying Carbon Filter Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the hose for the carbon filter from the tank.
