Installing The Mass Air Flow (MAF) Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

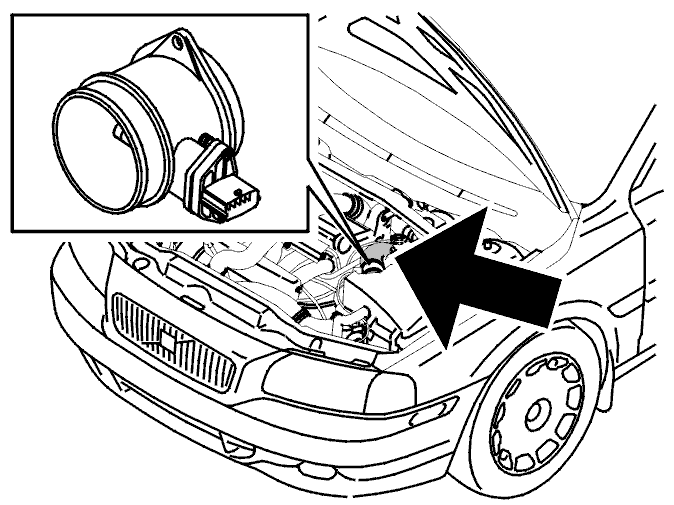

Fig 1: Locating Mass Air Flow Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Apply water to the O-ring in the air cleaner (ACL) cover to facilitate installation of the mass air flow (MAF) sensor.

Install the new mass air flow (MAF) sensor.

Press the mass air flow (MAF) sensor into place.

Install the screws. Tighten.

Install the inlet hose on the mass air flow (MAF) sensor. Tighten the hose clamp.

Press the connector for the mass air flow (MAF) sensor into place.
