Installing the engine speed (RPM) sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

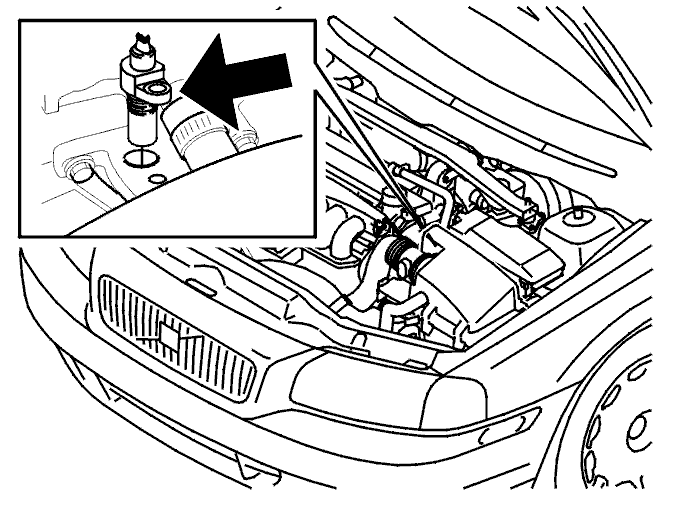

Fig 1: Identifying Engine Speed (RPM) Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

a new sensor.

Press the sensor into place. Tighten to 10 Nm .

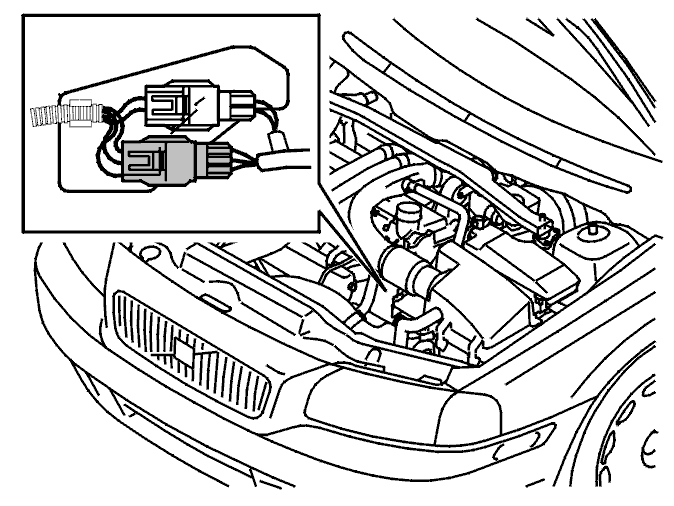

Fig 2: Identifying Camshaft Position Sensor Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connector.

the wiring on the bracket
the connector on the bracket
clamp the wiring
the hose bracket.

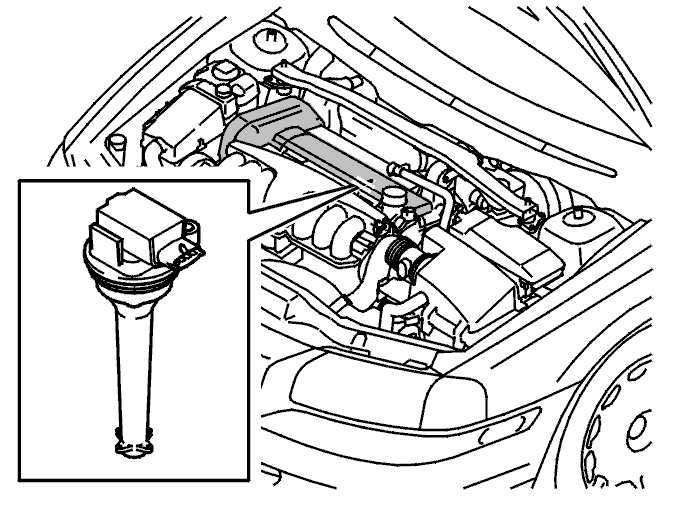

Fig 3: Identifying Ignition Coil

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies only to B6xx4S

the air preheating hose for the air cleaner (ACL) housing.

Applies only to B6xx4T

the air cleaner (ACL) housing
the connector to the turbocharger (TC) control valve and the mass air flow (MAF) sensor
the clamp for the intake manifold
the intake pipe between the front cover plate and the air cleaner (ACL) housing.
