Installing the camshaft position (CMP) sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Camshaft Position Sensor Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

new sensor . Tighten to 10 Nm
the camshaft position (CMP) sensor housing. Tighten to 17 Nm .Applies only to B6xx4T
the cable from the clamp on the cylinder block
the connector on the bracket
the hose bracket on the cylinder block.

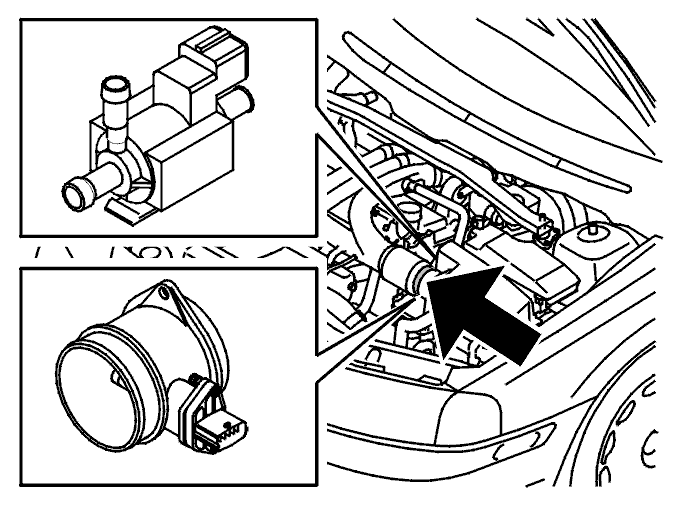

Fig 2: Identifying Mass Air Flow Sensor And Turbocharger (TC) Control Valve Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies only to B6xx4T

the crankcase ventilation pipe and the heater hose. Tighten the hose clamps
air cleaner (ACL) housing
the turbocharger (TC) control valve connector
the turbocharger (TC) control valve from the air cleaner (ACL) housing
the hose between the air cleaner (ACL) housing and turbocharger (TC). Tighten the hose clamp
the intake manifold between the front cover plate and the air cleaner (ACL) housing.

Install the preheating pipe on the air cleaner (ACL): Applies only to B6xx4S engines .
