Removing boost pressure sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

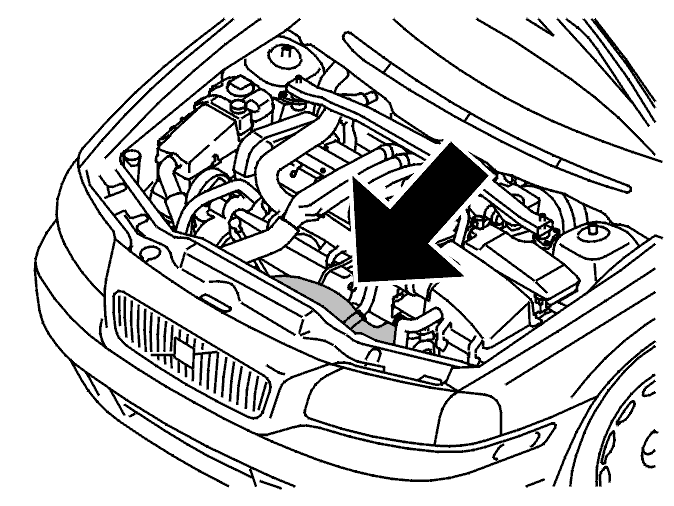

Fig 1: Identifying Intake Manifold Between Front Cover Plate And Air Cleaner Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

the intake manifold between the front cover plate and the air cleaner (ACL) housing. Applies only to B6xx4T .

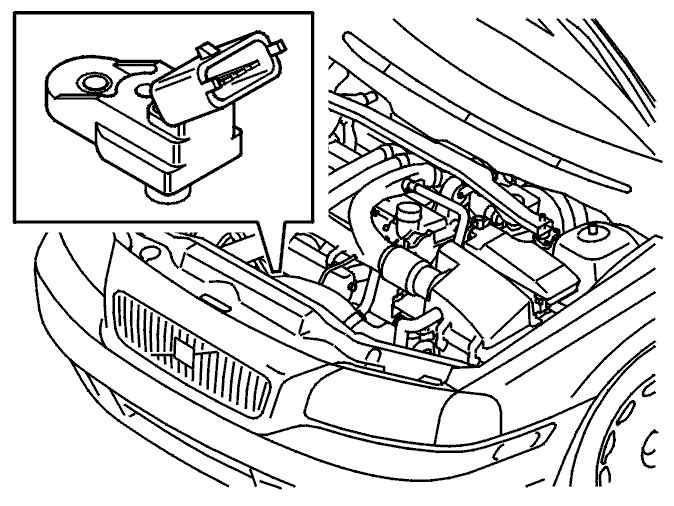

Fig 2: Identifying MAP Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

the connector from the sensor
the sensor from the intake manifold.

Fig 1: Identifying MAP Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

a new sensor
the connector.

Fig 2: Identifying Intake Manifold Between Front Cover Plate And Air Cleaner Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

the intake manifold between the front cover plate and the air cleaner (ACL) housing. Applies only to B6xx4T engines .
