Installing knock sensors (KS)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Install the new sensor. Tighten by hand.
Route the cables on the outside of the starter motor bracket.

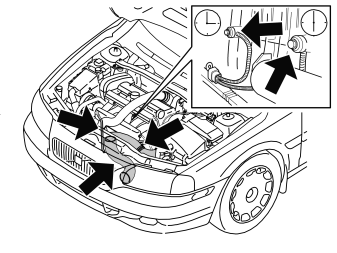

Align the sensors. The cable from the sensor for cylinder 2 = 3 o'clock and from the sensor for cylinder 4 = 6 o'clock.
Tighten the knock sensors (KS) to 20 Nm .
Connect the knock sensor (KS) connectors. Check that the wiring is in the correct position. Secure with a tie strap at the starter motor bracket.
Install
- the dip stick
- the pipe between the throttle body (TB) and the charge air cooler (CAC)
- the intake pipe between the front cover plate and the air cleaner (ACL)
- the negative battery cable. First read Battery, disconnecting .
