Upholstery, side cushion, replacing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Upholstery, side cushion, replacing

Carry out operation Side cushion .

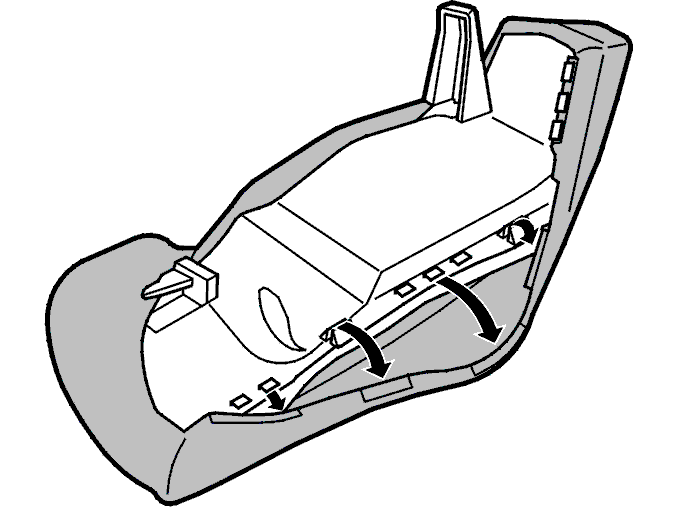

Fig 1: Hooking Upholstery Onto Frame
GLL105039Courtesy of VOLVO CARS OF NORTH AMERICA.

Unhook the upholstery from the frame.

Installation

Install:

Hook the upholstery onto the frame.
