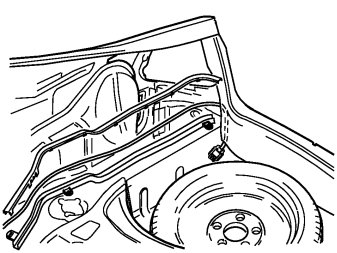

Connect a new cable harness to the connector by the sill and the fuel tank.
Place the cable harness in the seal ring's slot and in the bracket on the body.
Install the floor hatch and tighten with 6 Nm .
Check carefully that the seal is in place when the hatch is installed.
Open the vehicle's cable channel and lay down the cable harness.
Close the cable channel.

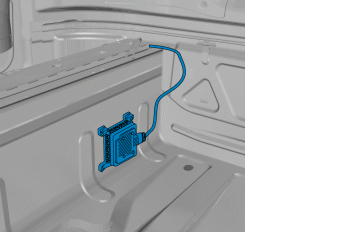

The control module shall be placed in the spare wheel well's rear part on the right side, between the two markings and below the bead of sealing compound.
Remove the protective tape from the self-adhesive Velcro fastener and install the control module.
Plug in the connector from the cable harness to the control module.
To install, reverse the removal procedure.
