Dashboard, replacing

Remove the battery lead. See Battery, disconnecting .

Remove:

• the A-post panel. See Panel, A-post, replacing
• the sound insulation from the left and right sides. See Soundproofing panel, replacing
• the center console. See Center console, replacing .

  HINT: Loosen the cables for the ignition switch interlock so that the gear selector can be moved freely.

• steering wheel module / steering wheel / steering column covers. See Steering wheel module (SWM), replacing
• the combined instrument panel. See Driver information module (DIM), replacing .

Fig 1: Locating Instrument Panel Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the two screws under the combined instrument panel (3 and 4).

• the cover on the short side of the dashboard (driver's side):

  Snaps off.

Fig 2: Locating Instrument Panel Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the two screws under the cover (1 and 2).

• the RTI screen. See Display screen / loudspeaker, RTI (road traffic information), replacing or
• the central loudspeakers. See Central loudspeaker, replacing or
• the grille if there is neither RTI or a central loudspeaker.

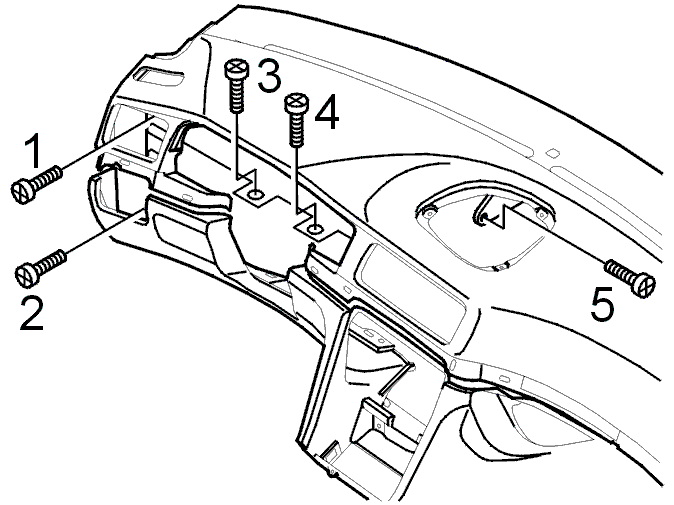

Fig 3: Locating Instrument Panel Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• one screw under the RTI, loudspeaker or grille (5).

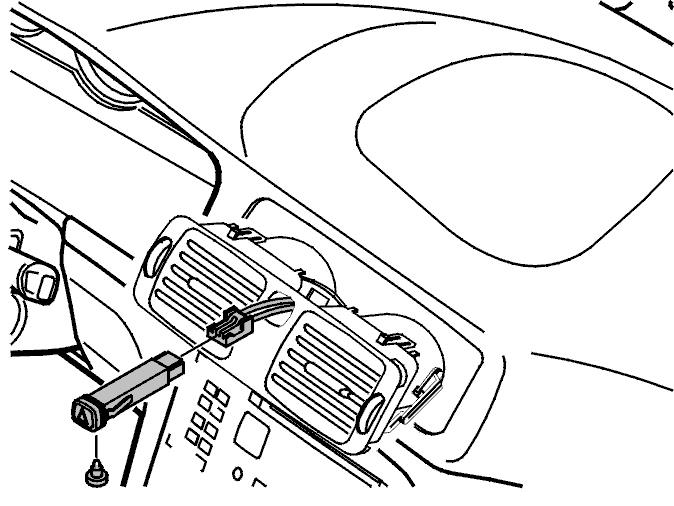

Fig 4: Identifying Hazard Warning Switch And Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the hazard warning switch.

Fig 5: Identifying Sun Sensor And Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the connector for the sun sensor.

• the radio and carphone:
  • For -2004, see:Radio cassette player, replacing .
  • For 2005-, see:Audio unit, replacing .

Fig 6: Identifying Passenger Side Dashboard Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the two screws under the dashboard environment panel (1 and 2).

• the cover on the short side (passenger side):

  Snaps off.

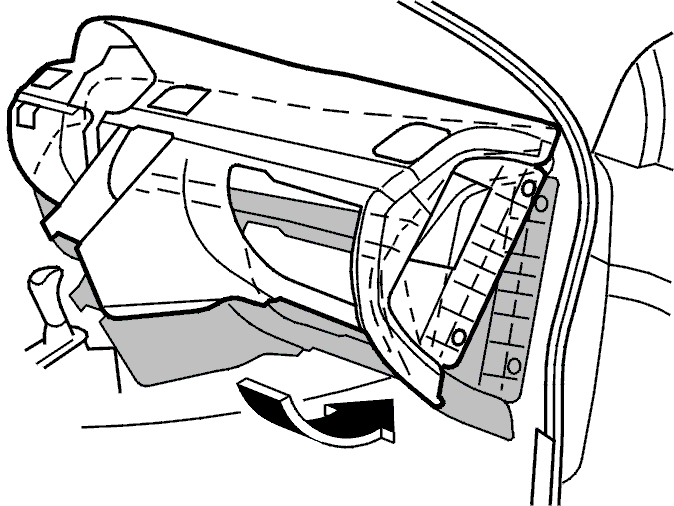

Fig 7: Identifying Passenger Side Dashboard Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the two screws under the cover (5 and 6).

• the glove compartment. See Glove compartment, replacing
• the SRS connector.

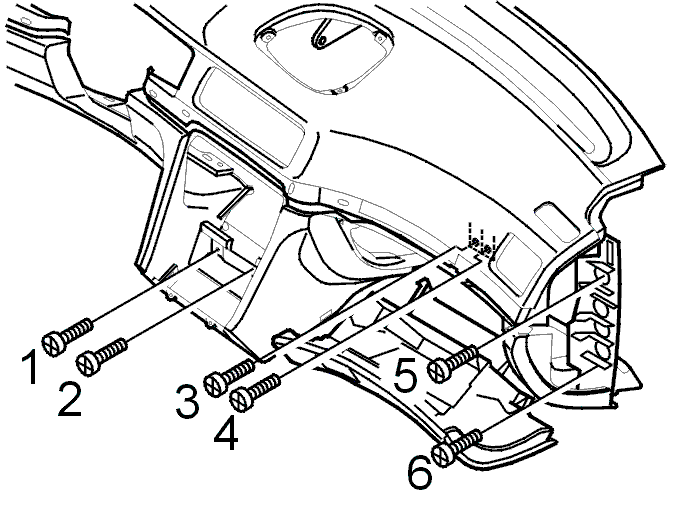

Fig 8: Identifying Passenger Side Dashboard Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the two screws for the SRS bracket (3 and 4).

Fig 9: Identifying Installation Of Dashboard

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the dashboard.

HINT: This is considerably easier if two people are lifting the dashboard in or out of the car.
