Location of components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

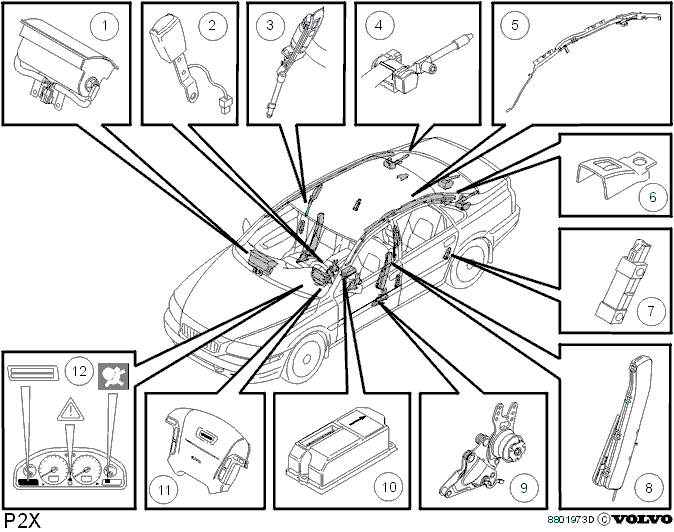

Fig 1: Locating Safety Equipment
GLL105305Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Passenger airbag
  2. Seat belt buckle
  3. Seat belt with seat belt tensioner, front seat
  4. Seat belt with seat belt tensioner, rear seat
  5. Collision curtains
  6. Lock for child seats (certain models only)
  7. Sensor in the B and C-posts
  8. Side impact protection (SIPS) bag
  9. WHIPS (WHIplash Protection System)
  10. SRS control module
  11. Driver's airbag
  12. Combined instrument panel
