Upholstery middle head restraint rear: Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Removing the upholstery for the center head restraint

NOTE:

Since the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

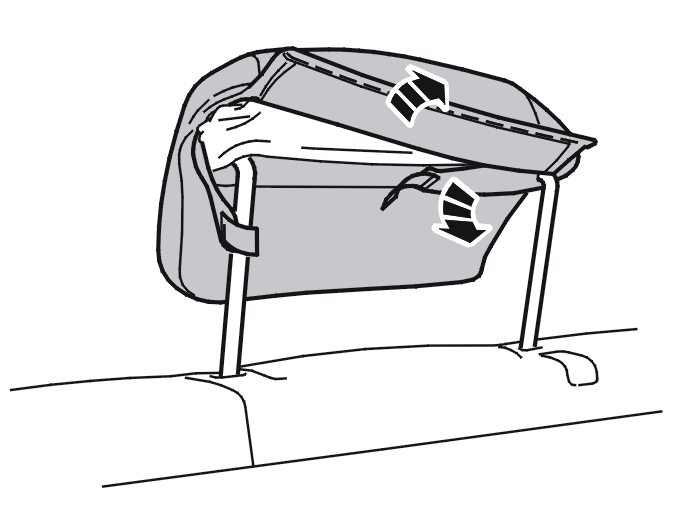

Fig 1: Identifying Removal Of Upholstery For Center Head Restraint

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull up the head restraint
Open the trim at the bottom (2)
Undo the Velcro strip
Slide off the upholstery.

Installing the center head restraint upholstery

Install:

the upholstery
the Velcro strip
trim (2)
press down the head restraint.

NOTE:

Check that the seams are positioned correctly in relation to the frame.

Operation Number(s): 85584-2

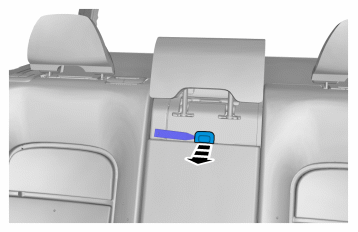

Fig 1: Identifying Removal Of Cover To Middle Head Restraint Release Latch

Courtesy of VOLVO CARS OF NORTH AMERICA.

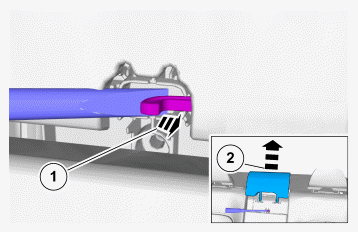

Fig 2: Identifying Removal Of Middle Head Restraint

Courtesy of VOLVO CARS OF NORTH AMERICA.

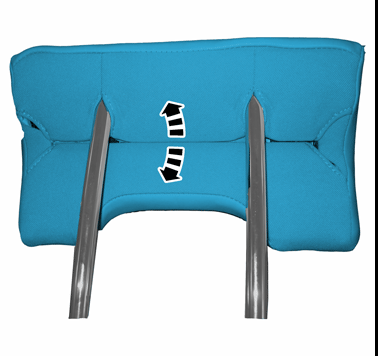

Fig 3: Identifying Removal Of Middle Head Restraint Upholstery

Courtesy of VOLVO CARS OF NORTH AMERICA.
