Removing seat cushion upholstery

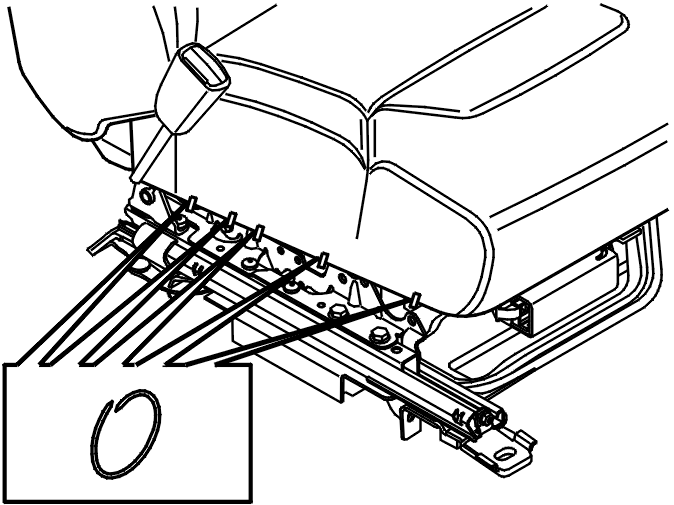

Fig 1: Identifying Half Moon Clips From Lower Edge Of Seat Cushion

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the half moon clips, 5 per side, from the lower edge of the seat cushion.

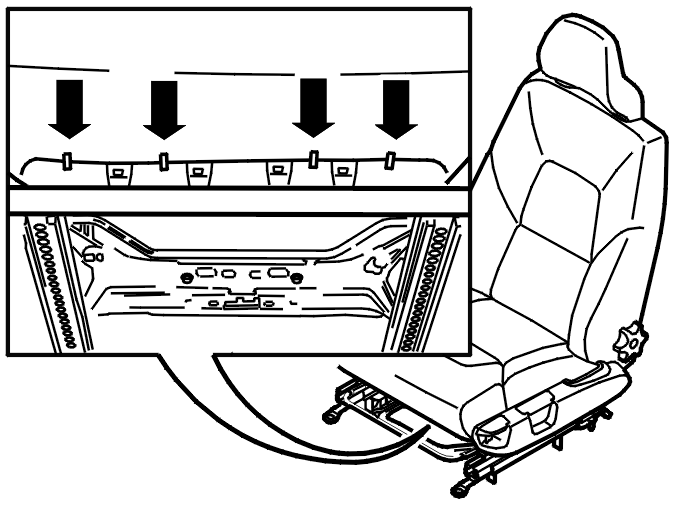

Fig 2: Identifying Half Moon Clips From Front Edge Of Seat Cushion

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the half moon clips, 4 per side, from the front edge of the seat cushion.

Fig 3: Identifying Tie Straps Around Cable Harness

Courtesy of VOLVO CARS OF NORTH AMERICA.

• all the connectors
• the tie straps around the cable harness.

Thread each connector individually through the hole in the seat cushion upholstery.

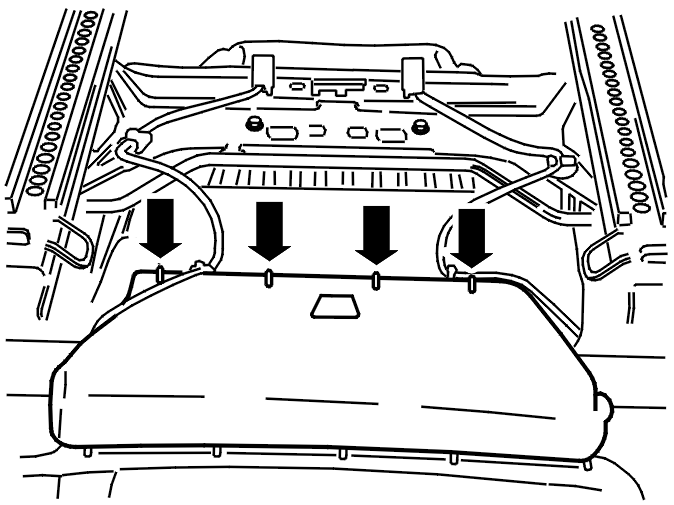

Fig 4: Identifying Half Moon Clips From Underside Of Rear Edge

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the half moon clips, 4, from the underside of the rear edge.

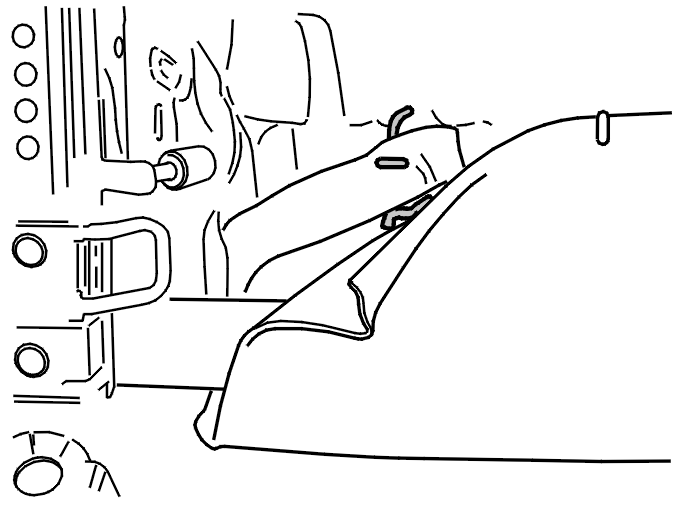

Fig 5: Locating Bottoms Of Half Moon Clips In Spring

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the half moon clips, 1 on each side. The bottoms of the half moon clips are located in the spring.

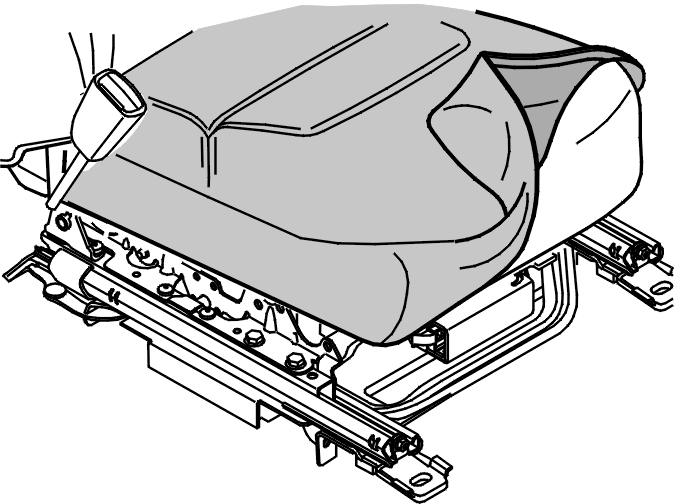

Fig 6: Identifying Folded Up Upholstery

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold up the upholstery.

Fig 7: Identifying Half Moon Clips On Each Front-Rear Channel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the half moon clips, 3 on each front-rear channel.

Fig 8: Identifying Half Moon Clips On Each Lateral Channel

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the half moon clips, 2 on each lateral channel.

Replace the upholstery.
