Modifying slide rails

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

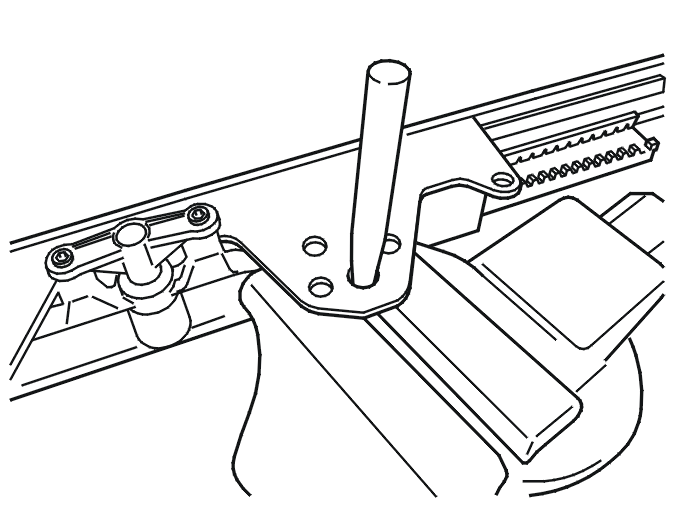

Fig 1: Identifying Removal Of Slide Rail Nut Pieces
GLL148289Courtesy of VOLVO CARS OF NORTH AMERICA.

When installing new slide rails these may have to be modified.

If the old slide rails do not have nut pieces, these shall be tapped out from the new slide rails according to the illustration.
