Replacing head restraint sleeves

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Carry out Upholstery back rest, replacing .

Fold out and release the protective pad and turn the backrest adjustment and lumbar adjustment knobs.

Press out the clip in the reverse of the protective pad.

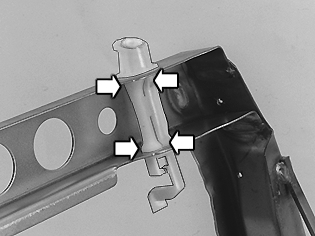

Fig 1: Identifying Clip In Reverse Of Protective Pad

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the catches for the sleeves.

Pull straight up.

Replace sleeve/sleeves.

Install:

In reverse order.
