Installing The Anti-Roll Bar

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

To ensure that there is no exhaust leakage, see: Flanged joint, assembling .

Fig 1: Screws Holding Anti-Roll Bar In Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

the anti-roll bar
the screws holding the anti-roll bar in the subframe. Tighten to 50 Nm .

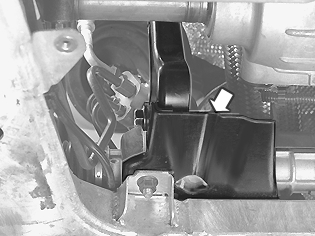

Fig 2: Collision Protection Between Steering Gear And Subframe.

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to right-hand drive cars.

At the same time position the collision protection between the steering gear and the subframe.

Fig 3: Anti-Roll Bar Link

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

the anti-roll bar links. Use new nuts. Tighten to 60 Nm . Counterhold with a Torx wrench.
