Removing the integrated relay/fusebox
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

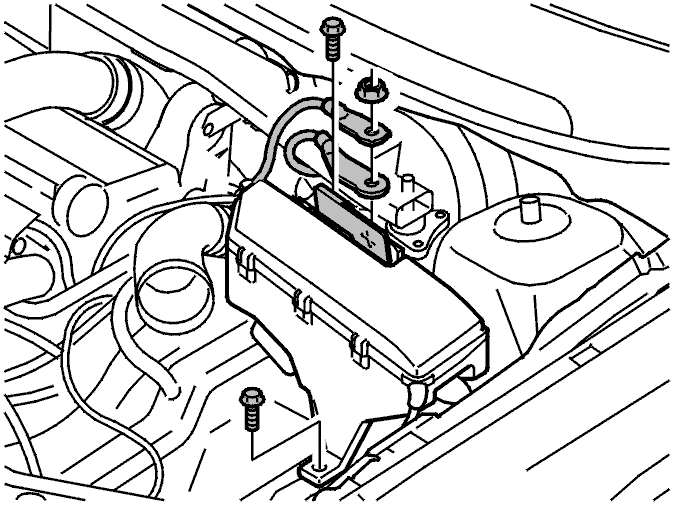

- Remove the nut for the positive cables
- lift the cable terminals away from the screw
- remove both the screws.
Remove:
- Remove the integrated relay / fusebox from the bracket

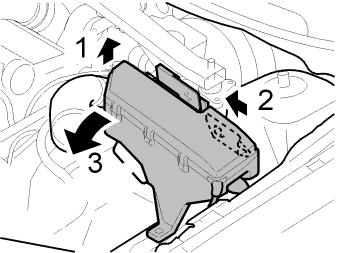

- lift up the box at the front (1). Press the box (2) to the side. Then angle the box out of the bracket (3).
