Remove the ABS hydraulic modulator with its bracket

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

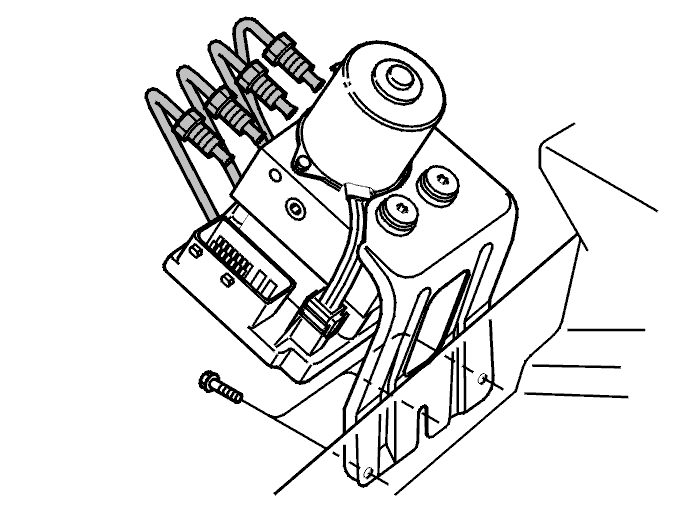

Fig 1: Brake Pipes To Wheel Brakes From ABS Hydraulic Modulator

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the brake pipes to the wheel brakes from the ABS hydraulic modulator.

Note the position of the pipes in the hydraulic unit .

Hang the brake pipes on the cross member.

Plug the brake pipes and connections for the ABS hydraulic modulator and master cylinder. This is to prevent contaminants entering the system.

Remove the 3 mounting screws for the bracket by the side member. Lift up the bracket.
