Install the integrated relay/fusebox

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

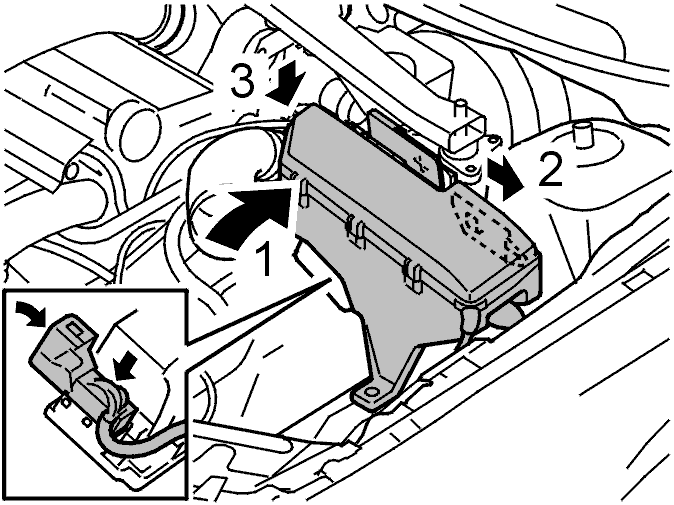

Fig 1: Identifying Integrated Relay/Fusebox

Courtesy of VOLVO CARS OF NORTH AMERICA.

Align the box in the bracket (2). Push the box to the side. Release the box so that it aligns in the bracket (3)
Install the screws. Tighten to 10 Nm
Install the positive cables and the nut. Tighten to 25 Nm
Connect the connector.

Finishing work

Remove the pedal jack.

Bleed the brake system

See Brake system, bleeding (using bleeding unit) .

Wash off any spilled brake fluid. Use warm water and car shampoo.

Function test

See Function test .
