Removing Screen/Circuit Board

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Screen

GLL153032

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screen's frame.

HINT: Begin on the side of the frame, for easier removal

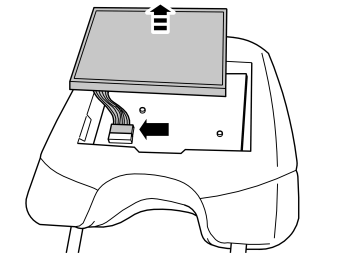

Fig 2: Identifying Screen Connector

GLL153033

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Prevent the risk of static electricity by touching a grounded object.

Carefully lift up the screen from the head restraint.

Remove the connector.

Fig 3: Identifying Circuit Board Screws

GLL153034

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2 screws.

Carefully lift up the circuit board.

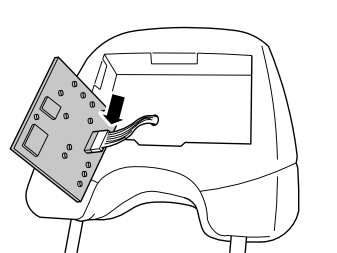

Fig 4: Identifying Circuit Board Connector

GLL153035

Courtesy of VOLVO CARS OF NORTH AMERICA.
