Removing The TV Receiver

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

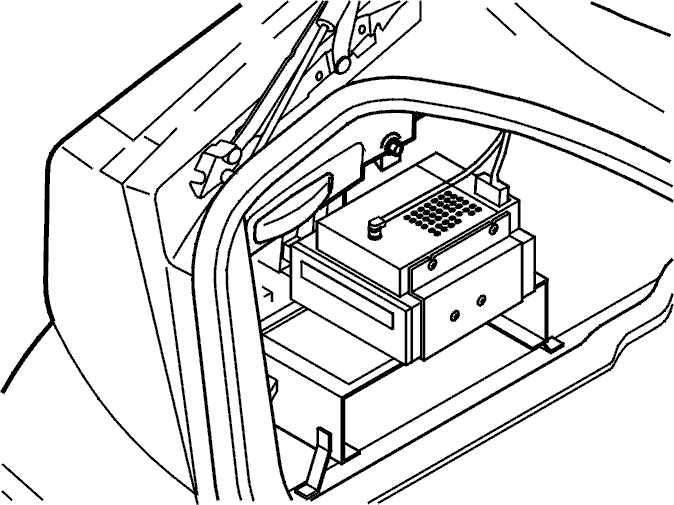

Fig 1: TV Receiver

Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: The TV receiver is secured on top of the road traffic information (RTI) control module.

Fold down the side panel on the left-hand side of the cargo compartment
Disconnect the connectors
Unscrew the TV receiver from the bracket.
