Repairing Cable Harnesses

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If an airbag(s) has deployed, the cable harness must be checked. See Checking the collision cable .

NOTE:

If an airbag(s) has deployed, the status of the reserve battery must be checked. See Checking the reserve battery .

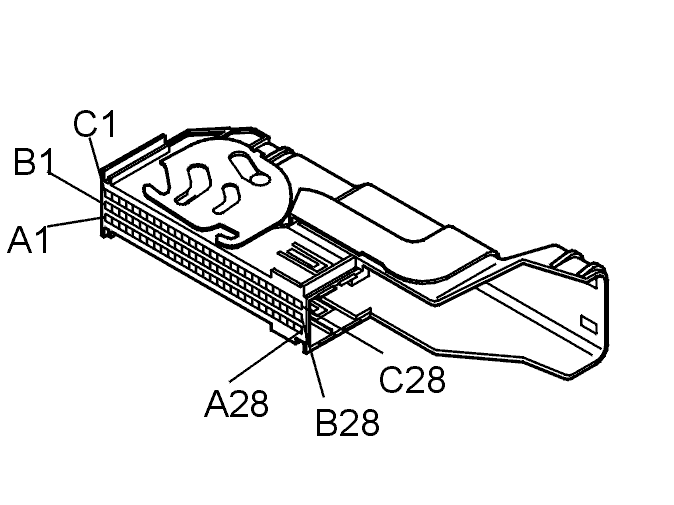

Fig 1: Identifying SRS Control Module Connector Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

The following terminals are for Volvo On Call:

The connector at the SRS (supplemental restraint system) control module: Terminal B28 /yellow/white cable).

Connector at the keypad: Terminal 17 (Yellow/white cable).

Fig 2: Identifying Connector Pins

Courtesy of VOLVO CARS OF NORTH AMERICA.

Repair the cable harness. See Cable harness SRS system, repair .

NOTE:

The cable between the carphone and SRS (supplemental restraint system) control modules (yellow/white) is joined in the cable harness and is routed to the central electronic module.
