Traffic message channel (TMC) reception

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

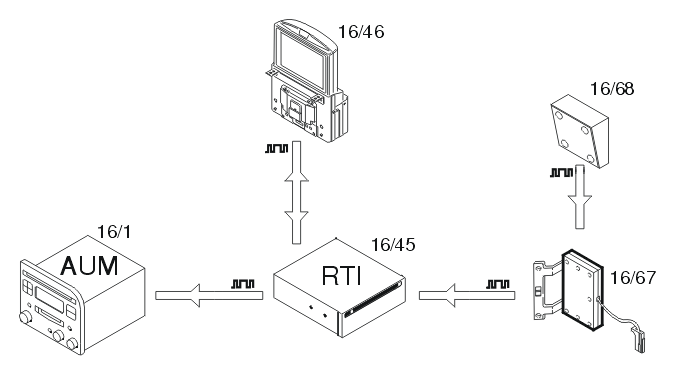

Fig 1: Identifying Traffic Message Channel Input And Output Signals
GLL106443Courtesy of VOLVO CARS OF NORTH AMERICA.

The role of the TMC receiver is to receive traffic information on the FM wavelength. The Japanese system is called FM multiplex.

The TMC receiver is integrated in the RTI system and is connected to the antenna system for the FM radio.

There is no traffic information system in the USA.

The TMC data signal is received by the TMC/FM multiplex antenna (16/68) which is located in the rear bumper. The signal is boosted by the antenna amplifier (16/67) before it is sent to the RTI unit (16/45). This data is displayed on the screen (16/46).
