Sun roof motor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

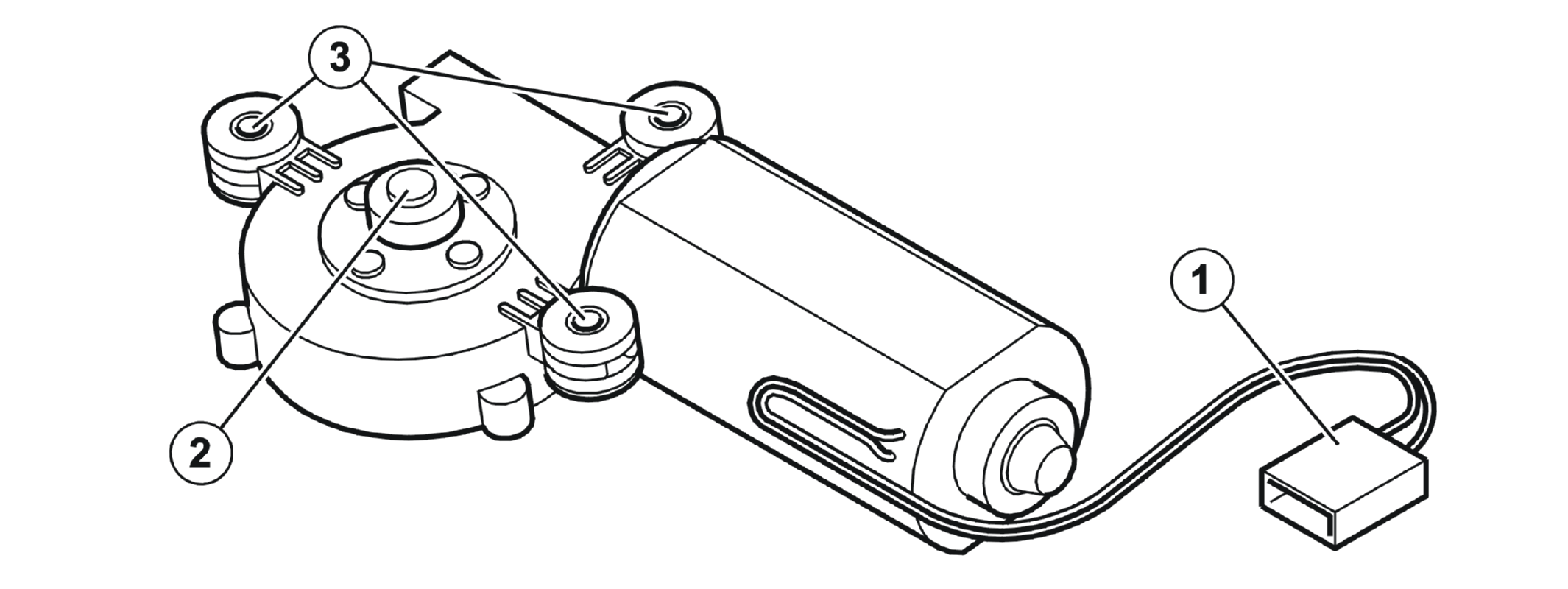

Fig 1: Identifying Sun Roof Motor

Courtesy of VOLVO CARS OF NORTH AMERICA.

The sun roof motor is connected (1) to the Sun Roof Module (SRM), which regulates current to the motor. Nominal system voltage is 12 V. Maximum top load during normal operation is 5 A. The motor drives a gear wheel (2), which engages the drive cables and causes them to rotate. The gear wheel has a maximum torque of 2.0 Nm and the motor has thermal overload protection. The motor is mounted with screws in the three mounting points (3) in the sun roof frame.

CAUTION:

In the event of mechanical blockage, which is normally prevented by the Sun Roof Module (SRM), the motor can produce a maximum torque of 6.8 Nm. This can damage drive wheels and cables. If the sun roof has been blocked, all sun roof components must be checked and, if necessary, replaced before recalibration.
