External input

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

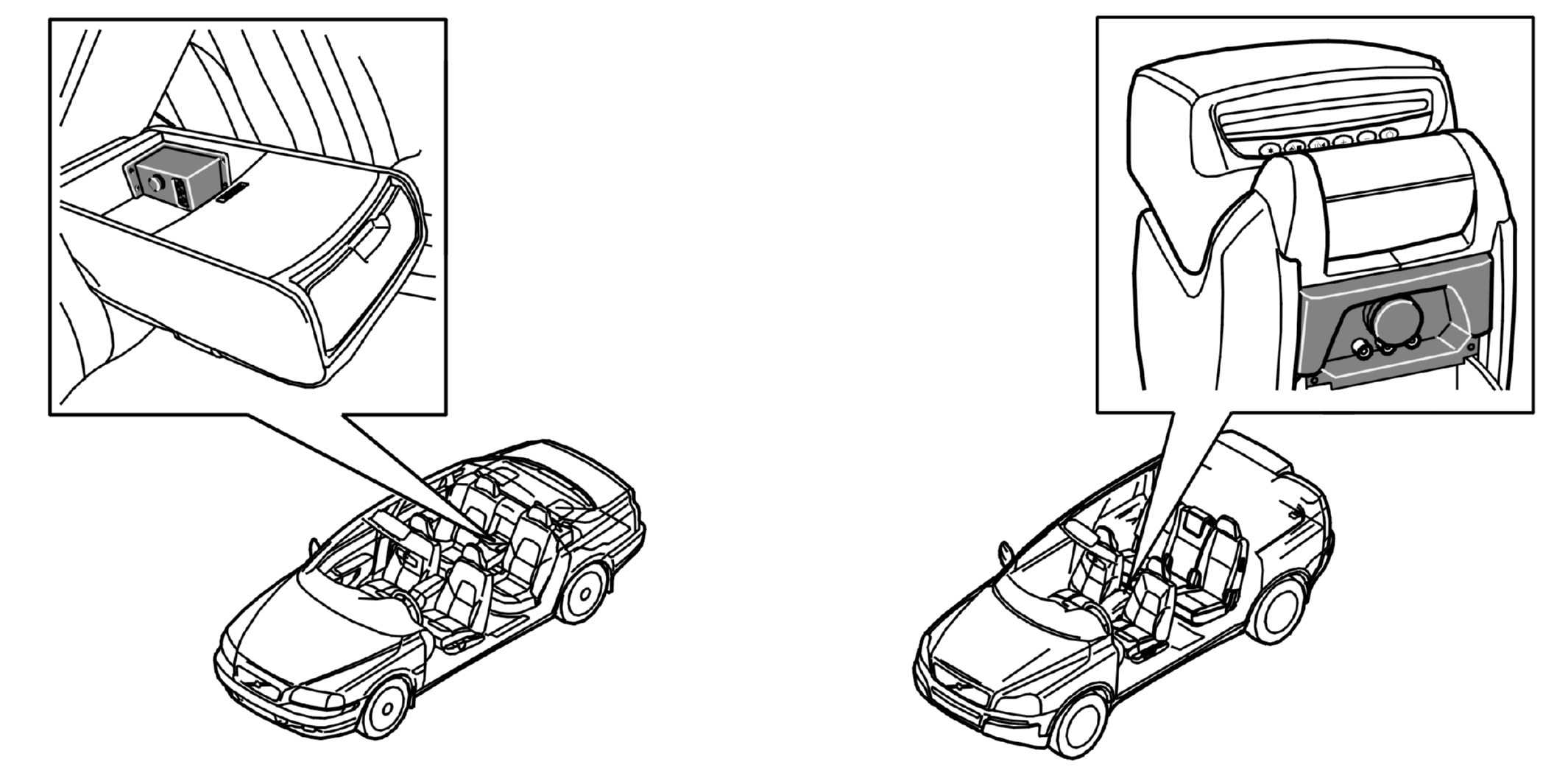

Fig 1: External Input
GLL150878Courtesy of VOLVO CARS OF NORTH AMERICA.

The armrest houses an AUX panel with external input connections for audio/video. This input can be used for inputting standard AV signals to the system. Such signals include video camera, Dreamcast, Nintendo, Playstation, Playstation 2, VHS videotapes, portable DVD or CD player.
