Checking the clutch driven plate

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

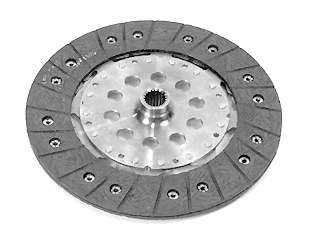

Fig 1: Checking Clutch Driven Plate
GLL109089Courtesy of VOLVO CARS OF NORTH AMERICA.

Wipe off the clutch driven plate using a dry cloth. The cloth must be free of oil and contaminants.

Check the clutch carefully for signs of wear, damage through overheating, cracking or other damage.

NOTE:

The clutch driven plate must always be replaced if there are no radial ripples remaining on the friction coating. The clutch driven plate must also be changed if there is oil or grease on it.
