Removing the flywheel
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Remove the engine speed (RPM) sensor with the bracket. Place it to one side.
Slacken off all the screws for the flywheel. Remove all the screws except for one.

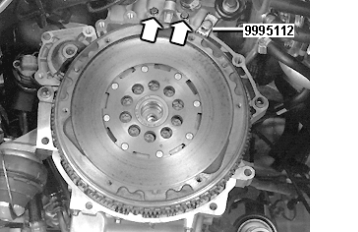

Remove gear sector 9995112 .
Detach the flywheel from the crankshaft. Remove the remaining screw.
Remove the flywheel.
