Intermediate section
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the outlet air pipe from the distribution box

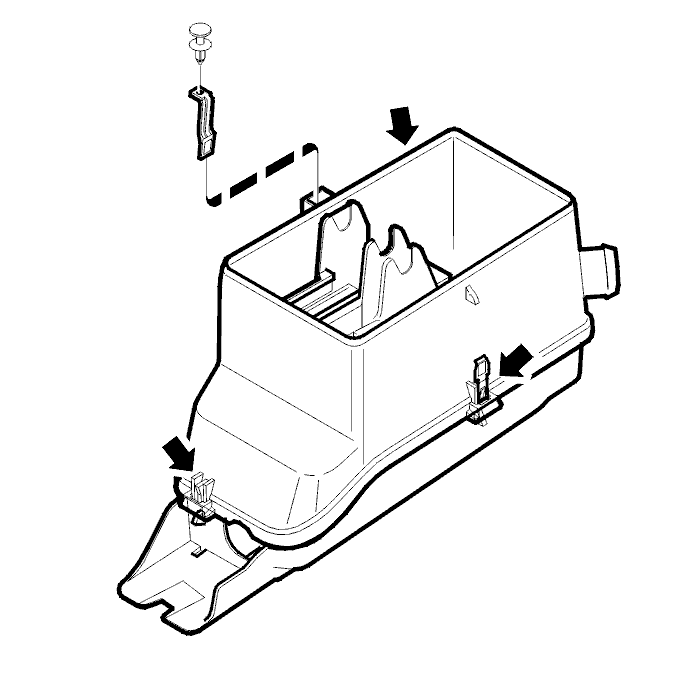

- Remove the 3 clips. Use a screwdriver. Remove the intermediate section
- Remove the power steering fluid reservoir and the coolant reservoir. Lift them up
- Remove the intermediate section.
