Performance test: Conditions

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Hood closed
Doors and windows closed
Start the engine
Engine speed 1500 rpm.

Fig 1: Blower Switch Fan Set To 50%

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Temperature Selectors For Maximum Cooling

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the temperature selector(s) to maximum cooling
Set the air distribution selector to the Ventilation position
Set the recirculation switch to the On position
Set the air conditioning (A/C) button to the On position
Set the blower fan switch to 50%.

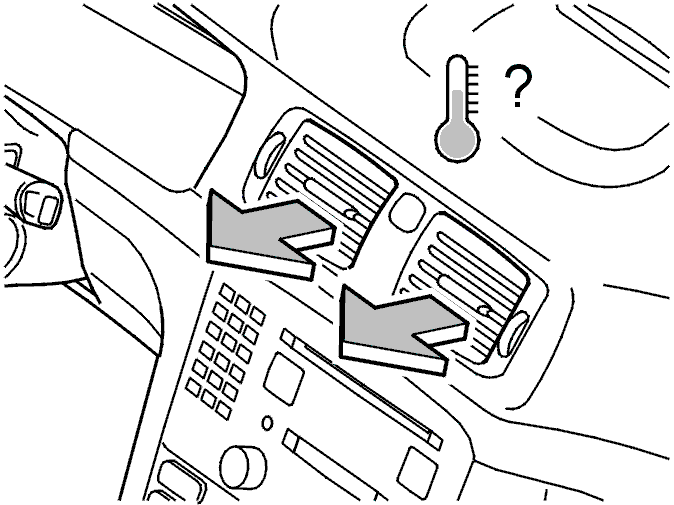

Fig 3: Checking Temperature At Center Dashboard Vents

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position a thermometer at the center dashboard vents
Allow the system to stabilize itself for at least 8 minutes.

Recorded operating conditions °C (°F)
Ambient air temperature measured in front of the car	20°C (68°F)	30°C (86°F)	40°C (104°F)
Temperature of the expelled air measured at the center panel vents	6-9°C (43-48°F)	6-9°C (43-48°F)	6-9°C (43-48°F)
