Installing the throttle body

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

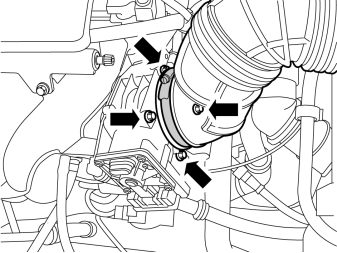

Fig 1: Identifying Throttle Body, Hose Clamp And Screws
GLL156393Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the gasket's mating surfaces on the intake manifold. Install the throttle body together with a new gasket.

Tighten to the screws with 10 Nm.

Install the fresh air hose using a hose clamp.
