Modifying The Mounting For The Lamp Housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

HINT: When installing a new lamp housing, certain adjustments to the lamp housing may be required. This may require modification of the lamp housing.

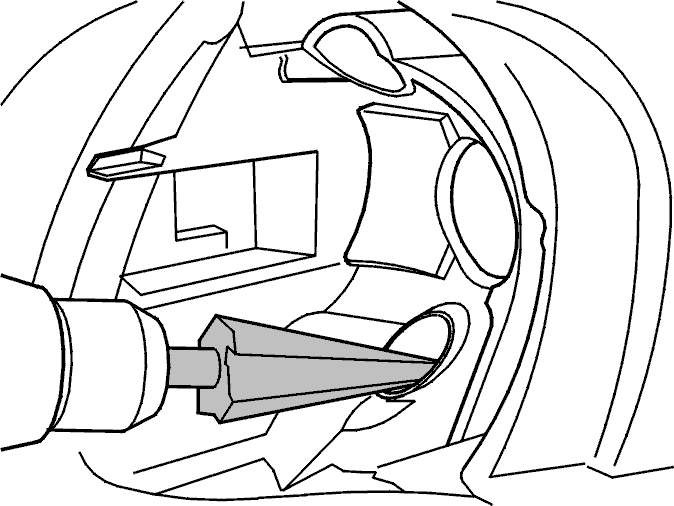

Fig 1: Identifying Mounting For Lamp Housing & Drill

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press in the catch holding the lamp housing
Detach and move the wiring and connectors to one side
Drill out the lower cable opening to approximately D=26 mm.
NOTE:
While drilling, check the alignment between the lamp housing and the mounting for the lamp housing.
