Location Of Components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

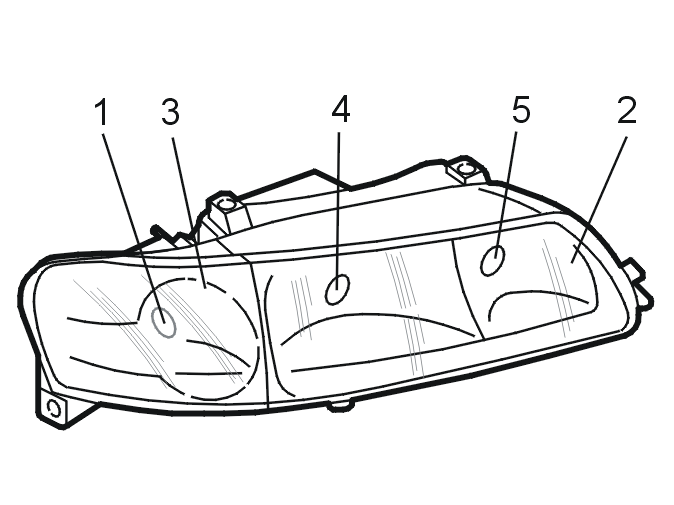

Fig 1: Identifying Headlamp Bulbs
GLL146961Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Turn signal lamps
  2. Parking lamps, applies to vehicles equipped with halogen lamps
  3. Parking lamps apply to cars with Bi-Xenon lamps
  4. Dipped beam
  5. High beam.
