Removing The Lamp: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Use protective goggles and gloves while carrying out the rest of the work. Handle the lamp with extreme care. The lamp is gas pressured and can explode.

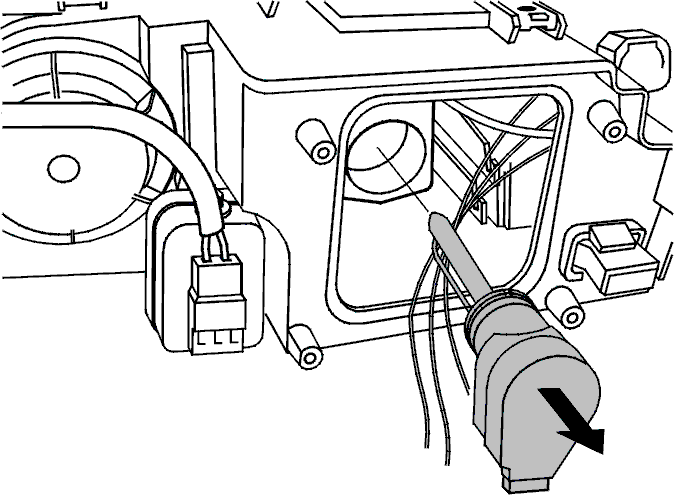

- Remove the spring clamp above the bulb holder
- Turn the bulb holder counter-clockwise
- Carefully pull the bulb and holder straight out from the lamp housing
- Remove the bulb by pressing and twisting it
- Place the old bulb in the carton and send it off for recycling.
