Installing The Lamp
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Handle the lamp with extreme care. The lamp is gas pressured and can explode.

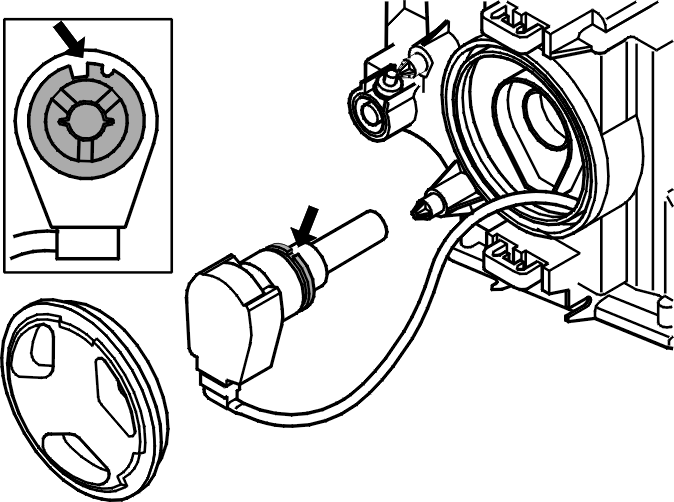

- Install the bulb in the holder by pressing and twisting it.NOTE:
Position as illustrated.
- Install the bulb and holder in the lamp housing. The connector must be downwards
- Turn clockwise to the locked position
- Lock the bulb using the spring clamp
- Reinstall the lamp connector.
