Installing The Ballast

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

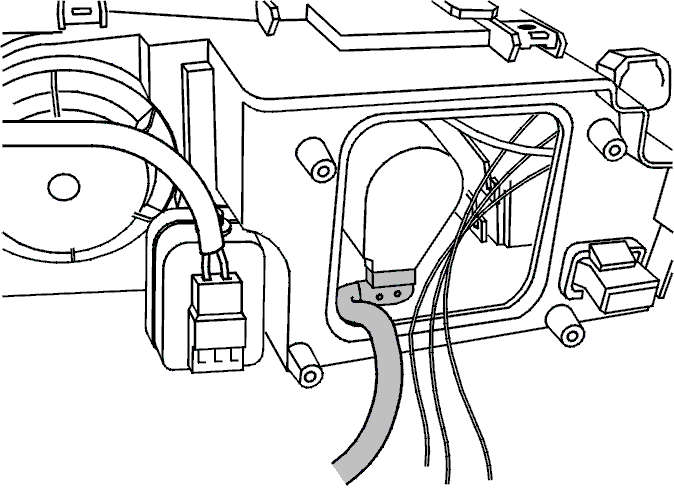

Fig 1: Identifying Cable Installed Into Ballast

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold the cable into the ballast
Carefully tighten the screws
Install the filler pipe and the hose for the washer reservoir.

Fig 2: Connector And Bi-Xenon Lamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten the screw.

Function test: Turn on the headlamp. Wait a few seconds and then check the high and low beams.
