Removing The Ballast

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

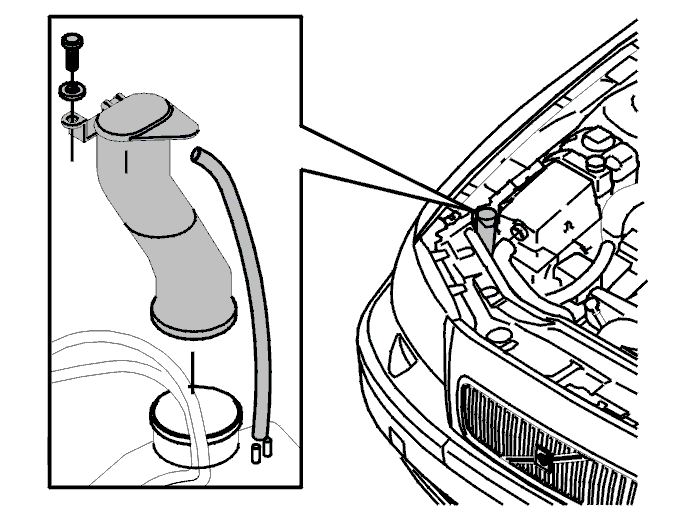

Fig 1: Identifying Filler Pipe For Windshield Washer Fluid Reservoir

Courtesy of VOLVO CARS OF NORTH AMERICA.

On the right-hand side remove the windshield washer fluid filler pipe for better access
Remove the screws for the filler pipe for the windshield washer fluid reservoir
Pull the pipe from the reservoir and remove the hose
Place paper over the hole

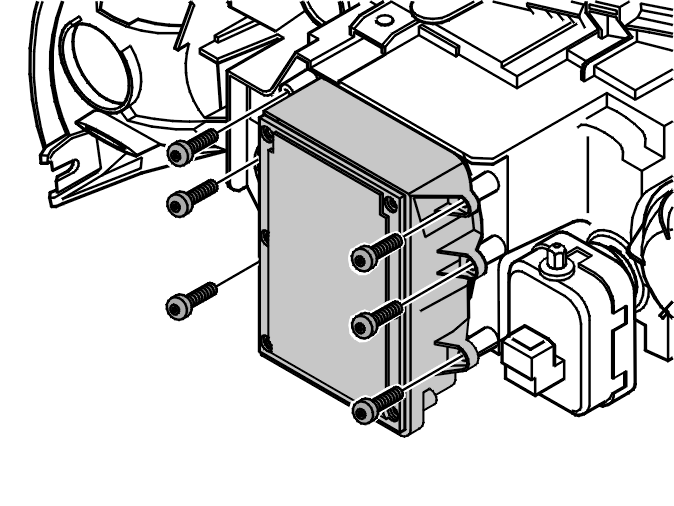

Slacken off the six screws. Use Torx 20 with holes.

Fig 2: Connector And Bi-Xenon Lamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold out the cable from the ballast.

Disconnect the connector from the Bi-Xenon lamp.

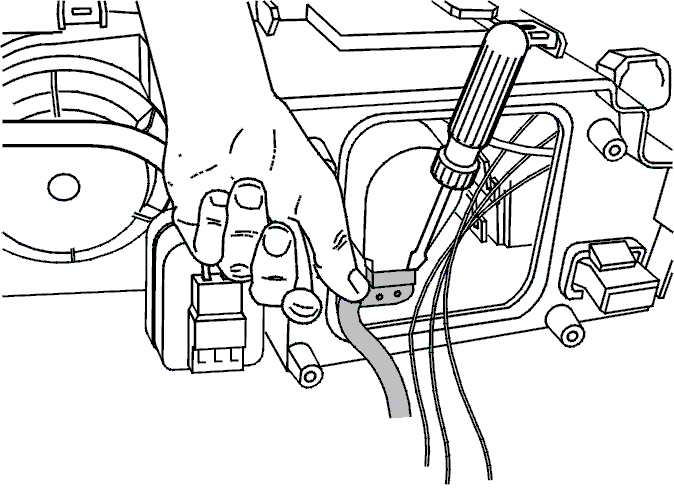

Fig 3: Identifying Outer Edge Of Connector Pressed In Using A Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use a screwdriver and carefully press in the outer edge of the outer section of the connector. At the same time press the other side of the connector downwards.

Move the ballast to one side.
