Motor Height Control Headlamp, Replacing: Installation: Engine
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
- Twist the adjusting screw on the motor so that the shaft is extended, in order to facilitate installation
- Remove the cover for the outer bulb
- Apply grease to the ball
- Pull the reflector backwards. Place the ball in the mounting for the reflector

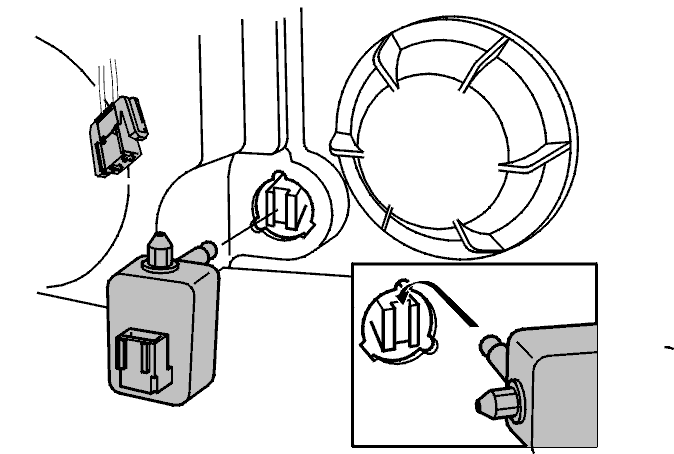

- Place the ball in the groove of the mounting and twist the ball onto the mounting. Feel that the ball is correctly installed using your fingers
- Twist the motor upwards axially so that the ball slides into the mounting
- Twist the motor into the correct position
- Connect the connector
- Install the cover for the bulb
- Align the headlamps.
