Identifying The Stop Lamp
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

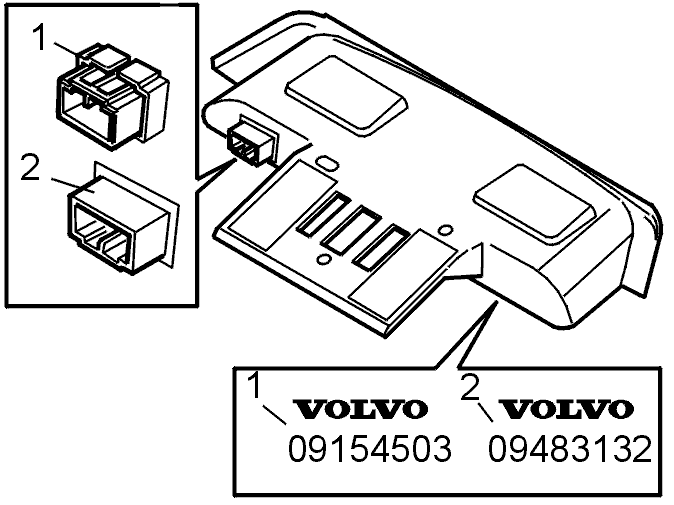

A version 1 stop lamp can be identified as follows:
- The P/N (1), stamped onto the left-hand side of the stop lamp, is 9154503
- the connector (1) on the stop lamp has a smooth surface facing downwards and an enclosing collar.
A version 2 stop lamp can be identified as follows:
- The P/N (2), stamped onto the left-hand side of the stop lamp, is 9483132
- the connector (2) on the stop lamp has a smooth surface facing upwards.
