Bulb Holder And Bulb

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

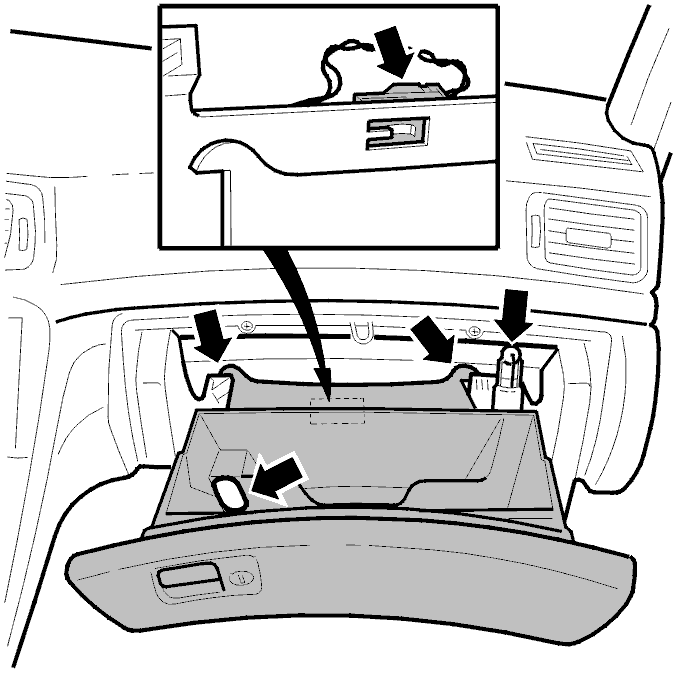

Fig 1: Replacing Glove Compartment Lighting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Open the glove compartment. Remove the upper mounting for the strut from the ball mounting
Release the stop lugs and allow the lid to hang
Remove the bulb holder
Remove the bulb
Disconnect the connector from the mounting
Separate the connector and thread through the hole
Remove the bulb holder.
