Switch, Sun Roof, Replacing: Removal
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Sun roof switch
- Ignition off
- Remove the interior lighting. See Interior lighting and upper electronic module (UEM), replacing

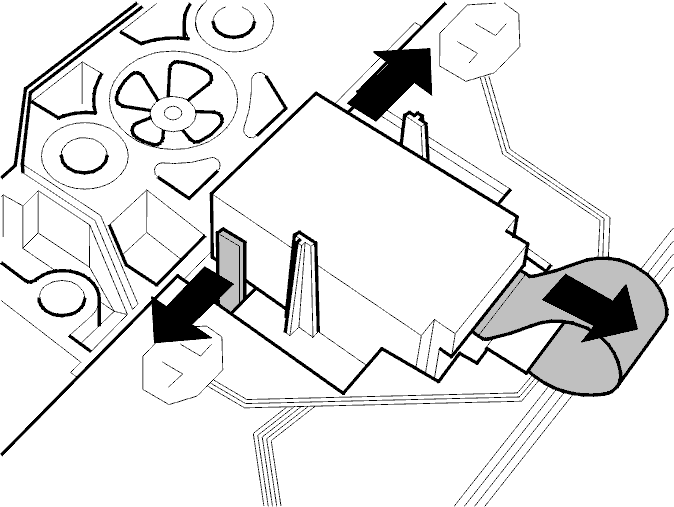

- Press out the catches. Pull the switch outwards and upwards
- Pull out the catch. Pull out the tie strap.
